Indoor Optical Fiber Cable - China

Feature:

Adopt fiber with small bending radius (G.

657),

offering good bending resistance;

Adopt all-dry structure and fiber with small bending radius,

Easy cable stripping without need of tools, easy cable fixation

and low cost of installation.

Application:

As FTTH cable, for indoor horizontal and vertical cabling;

Indoor cabling under carpet and along corner.

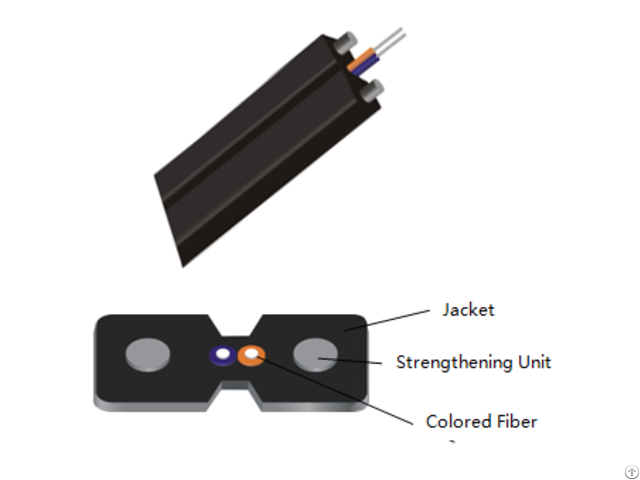

Fiber Cable Characteristics: Technical Parameters:

Outer diameter(mm) 3.1x1.9（2） 4.0x2.0（4）

Nominal Weight(kg/km) 9.0 11

CrushResistance

(N/100mm)Long/Short term 300

1000 300

1000

Tensile Strength(N)

Long/Short term 200

600 200

600

Min.

Bending

Radius(mm) Dynamic 20H

static 10H

Temperature Range -20℃-70℃

Order Information:

Fiber Core Fiber Type Count Cable OD reinforcer Fiber Jacket Jacked Color

1=G652D

2=G657A1

3=G657A2

4=50/125

5=62.5/125

6=OM3

7=OM4

X=other S=simplex

Z=zipcord Duplex

Y=Round Duplex

F=Flat Duplex

B=Breakout

D=Distribution

R=Ribbon

A=Armored

W=Waterproof

X=other 001=1 core

002=2 cores

003=3 cores

024=24 cores

XXX=other 01= 0.9mm

02=2.0mm

03=3.0mm

04=2.9*6.0mm

05=1.9*3.1mm

06=4.2*7.6mm

07=9.0mm

08=11.2mm

09=4.0*7.0mm

XX=other 1=Kevlar

2=FRP

3=Armoured steel tape

4=Steel wire

5= Armoured steel tape & Steel wire

PR=PVC-OFNR

PP=PVC-OFNP

LH=LSZH

PE=PE

PU=TPU

LN=Nylon

HT=Hytrel

xx=other 01=Blue 02=Orange

03=Green 04=Brown

05=Slate 06=White

07=Red 08=Black

09=Yellow 10=Violet

11=Rose 12=Aqua

13=12 Color

XX=Other
