Industrial Grade 4g Lte Cpe Wireless Wifi Router Support Vpn Apn - China

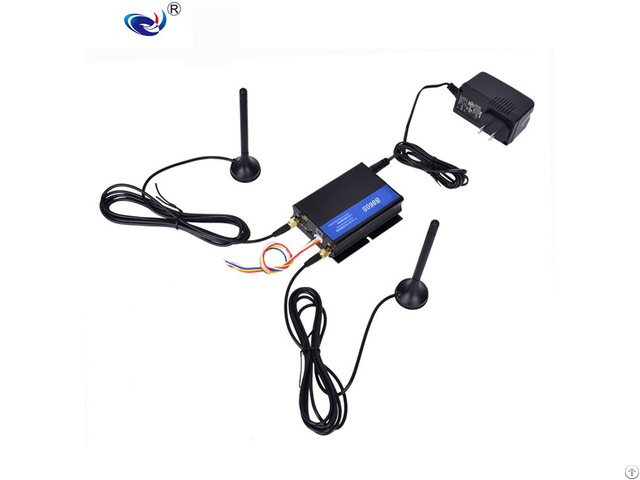

Industrial grade 4G Router LTE CPE Wireless WIFI Router Support VPN APN

B860S series industrial grade wireless router communication products which are based on 3G and 4G internet requirements and developed.

They are mainly applied for data transmission of industrial users and support transparent data transmission, picture transmission, equipment monitoring and wireless router internet functions.

B860S use 32 bit processors, it can process protocols and a large amount of data in a high speed .

It also can match with many types of industrial modules for 3G /4G internet .

(3G: WCDMA/EVDO/TD-SCDMA, 4G: TD-LTE/FDD-LTE ).

Providing 10/100M Ethernet network port, WIFI wireless connector, serial port, USB connector for connecting many kinds of terminal equipment .

Supporting Web configuration, easy management and remote message control .

Application Electronics, Oil industry, Mineral, Finance, Communication, Public security, Heating, Industrial control, Meteorology, Water conservancy, Public transportation, local council and so on .

1 - Product Feature: l Adopt high grade industrial wireless module.

l Support 3G(WCDMA/CDMA/TD-SCDMA), 4G(FDD-LTE/TD-LTE).

l Adopt metal case, IP30 protection grade.

l Wide voltage and current input: DC6-35V/3A; l Anti-reverse power connection protection, surge protection, ESD protection .

l Software and hardware watch dog design, support anti-crash functions.

protect equipment work stable and reliable.

l Automatic detection when network disconnects, automatically restart when dialing fails, scheduled reboot etc.

l Serial transparent transmission function, It can access to order control mode by serial port, control router and other equipment .

l SMS control dialing, offline and restart function l Support socket server and customer end mode.

l Support different types of DDNS service.

l Port mapping, DMZ host function l Support VPN, PPTP client, L2TP client l Support ads pushing function by customer end verification.

2 - Product Function 2.1 Software function Connection way 3G/4g connection, DHCP/Static IP/ PPPOE User quantities Wire: 253, Wireless: 30 Operation system Windows XP/VISTA Linux 2.6 Windows 7 MAC OS : 10.3.7and above S Browser IE: 6.0 and above Safari: 1.2.4 and above Firefox: 2.0.0.8 and above Security Management Firewall setting: Protect the computer in the local area network purposed attacking from Internet MAC filtration: Prohibition MAC address already added Access control: control the right of access to computer in LAN.

Port restriction: Stop some virus according to some port from connection at one time .

Stop DOS attack.

Server Virtual server: set inner service server and provide user to access DMZ : when you need set the opening port of virtual server is not sure, you can set it into DMZ host.

Port trigger: it can realize WIFI router open to the inner service port automatically by accessing to the port of Internet Serial port service: realize the serial port transit transparently, AT order control and so on.

Message service: it can control connection, hanging off and restarting by message.

Ads verification/pushing: Customer end verified management by WIFI Dog Protocols.

Equipment management Area setting NTP Server setting Copy and storage system setting Recovering the setting information from files Recovery to default setting Software updating Remote management Restart Reset password WLAN security mode Open System WPA-PSK WPA2-PSK WPAPSK WPA2PSK(combine WPA-PS with WPA2-PSK mode) WPA1WPA2(combine WPA with WPA2 mode ) 2.2 Hardware specification Wireless connector IEEE802.11b/g/n Operation frequency 2400-2483.5M Main core chip Ralink RT5350 Antenna SMA (outer part is spiral, inner part is hole) WIFI transmission speed 150Mbps Outer connector LAN connector: 2 pcs(LAN1 is the self adjustive of WAN/LAN port ) RS232connector: 1pcs

SIM card slot: 1pcs antenna connector: 2 pcs indicator: 4pcs

DC power supply connector: 1 pc reset button: 1pcs Data speed 802.11n: upto150Mbps

802.11b: 1, 2, 5, 5, 11Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps Transmission power 11nHT40MCS7: +13.5dBm

11bCCK: +18dBm

11g OFDM: +13.5dBm Receive sensitivity -66dBmat150Mbps

-73dBmat54Mbps

-86dBm at 11Mbps Dimension Long*width*Height: 83*66*2 6mm(excluding antenna interface) Power DC supply power: 6-35V 3A Consumption (current) Smaller than 400mA Work environment Work temperature: -20°C ~ +75°C Storage temperature: -40°C ~ +80°C

Humidity: 5%~95%, No condensation
