Internal Gps Active Antenna - China

price: 1.53 Dollar US$

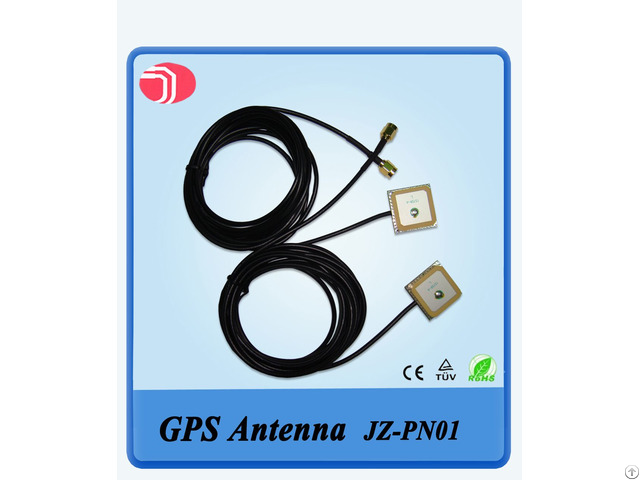

Internal Gps Active Antenna

Products Photos Catalog Internal Gps Active Photos Catalog

Specification

1) Dielectric Antenna

Center Frequency 1575.42 MHz±3 MHz

V.S.W.

R 1.5: 1

Band Width ±5 MHz

Impedance 50 ohm

Polarization Type R.H.C.

P

2) LNA/Filter 　

LNA Gain(w/o cable) 28±2 dB Typical

Noise Figure 1.5 dB

DC Voltage 2.2~5 V

DC Current 5~15 mA

3) Mechanical 　

Cable RG174, 3m orIPEX

Connector SMA/MCX/SMB/BNC/Fakra or others

4) Environmental 　

Working Temp.

-40℃~+85℃

Humidity 55%~75%RH

Waterproof IP67


Company Contact:


  • Phone: 86-573-82230666

  • Address: NO.18 Huiyuan Road, Japanese Investment Zone, Youchegang, Jiaxing ，Zhejiang, Jiaxing , Zhejiang , China

  • Email: Email


Published date: August 5, 2016

  • Business Description: GPS antenna, GSM antenna, WIFI antenna manufacturer in China.

    Free samples offer you for test, each products test ourselves before deliver to you.

    Good quality, welcome you vist our website.

    www.

    jinzhonggps .

    com
