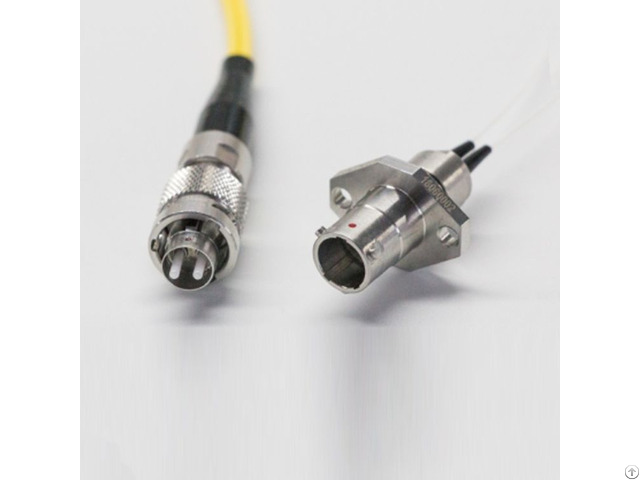

Jys Fiber Optic Connector Aviation - China

Product Introduction Suitable for use in electronic, aviation, military, naval, and other systems, with strong environmental endurance capabilities, replacing FC, LC, and other civilian active connectors.

The outer shell can be made of various materials and coatings to adapt to different environmental requirements.

Three-key positioning, featuring blind mating and error-proof insertion capabilities.

Quick bayonet connection.

Optical alignment is achieved through precision mating of ceramic ferrules and sleeves.

Adapter socket, freeing from the constraints of optical cables.

Mechanical Properties • Mechanical Life: 500 cycles of insertion and removal

• Shock Resistance: Acceleration of 2940m/s²

• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 0.2G²/Hz

• Tensile Strength: ≥68N (for contact elements compatible with Φ2 optical cables) Environmental Performance • Temperature Range: -55°C to +85°C (depending on the optical cable temperature)

• Salt Spray: Class K: 500 hours, Class F: 48 hours Optical Performance • Insertion Loss: ≤0.5dB

Company Contact:

• Posted By: Gigac

• Phone: +86.18512845338

• Address: Zone 3-502,Haolang Science Park, Chengdu , Sichuan , China

• Email:

• Website: https://www.gigac.com/

• Business Description: Gigac Technology Co., Ltd.It was established in May 2012, which is focus on the Fiber Optical Transceivers Modules and devoted to be the leader of optical transceivers manufacturer in China.

  The Headoffice is in Chengdu city,China.

  It is composed by Operation Center, Sales Center, Research and Design Center, Labratory, Production Line and branch offices in Beijing, Nanjing, Wuhan and Shenzhen.

  GIGAC has implemented ISO9001: 2008 Quality Management System and ISO14001: 2004 Environmental Management System.

  Whole Supplying Chain and Production Line are complying with RoHS6 standard, FCC, CE and other compulsory certification system associated with fiber optic industry.

  With more than 10 years of producing and researching experience, Gigac has developed many variants of optical modules: Full Scale Production from 100M to 1.25G and 10G Bit Rate, release EPON,GPON and 40G in 2013, release 40G QSFP+SR modules in 2014, release SNAP 12 Parellel, UOST/Stratos series, T/R Component in 2015, Release QSFP28 SR, LR4 ,CWDM 4 in 2017 - Now SFP+ 120KM transceivers, GPON, EPON, XGSPON,Combo series are released.

  Gigac Technology is providing the following reliable solutions:

  1 - Fiber Communication among the electronic devices in aircraft, ships and military vehicles;

  2 - Automatic Control in Power plant and Industy control;

  3 - Optic Transceivers used in FTTP, FTTB, FTTC in the world.

  Our Vision: To become a reformer of the optical active industry with characteristics.

  Our Values: Innovation, Efficiency, Integration and Struggle

  Providing High-Quality, Efficient and Reliable products to Valued Customers.
