Magnet Optical Switch - China
price: 1.00 Dollar US$

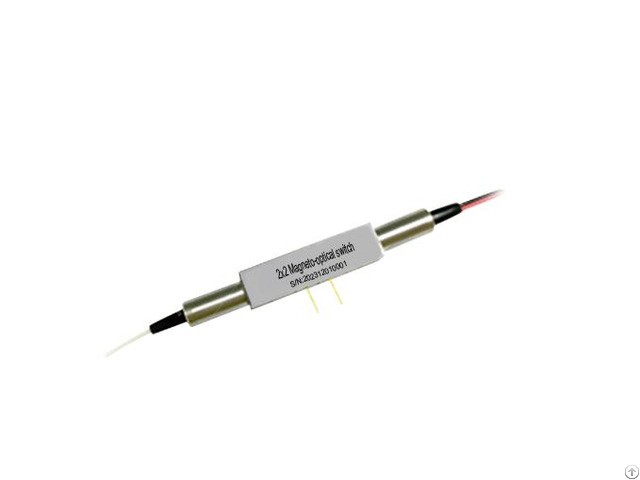

2×2 magneto optical switch connects to the optical path by connecting or blocking the optical signal; the switch has a non-mechanical configuration and is activated by an electrical control signal; the optical switch also has built-in circulator and isolator functions; the product is widely used in aerospace and military equipment .
FEATURES
· High switching speed · Better durability · High reliability · Low voltage drive · Fail-safe latching APPLICATIONS
· Optical channel blocking · Configurable Add/Drop · System monitoring, Test&measurement · Fiber-optics sensing system SPECIFICATIONS
Parameters Unit 2×2
Wavelength Range nm 1520~1580
Test Wavelength nm 1550
Insertion Loss dB ≤ 1.2
Return Loss dB ≥ 50
Crosstalk dB ≥ 30
PDL dB ≤ 0.2
Repeatability dB ≤ ±0.01
Operating Voltage V 2.5±10%
Drive Current mA 110~190
Durability Cycles ≥ 30 Bllions
Switching Time us ≤100(typ：50)
Pulse Duration us 200~500
Switching Type n/a Latching
Optical Power mW ≤ 500
Operating Temperature ℃ -5~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L)37.0×(W)7.5×(H)7.5 ±0.2
Company Contact:
- Phone: 8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: April 14, 2024
- Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
