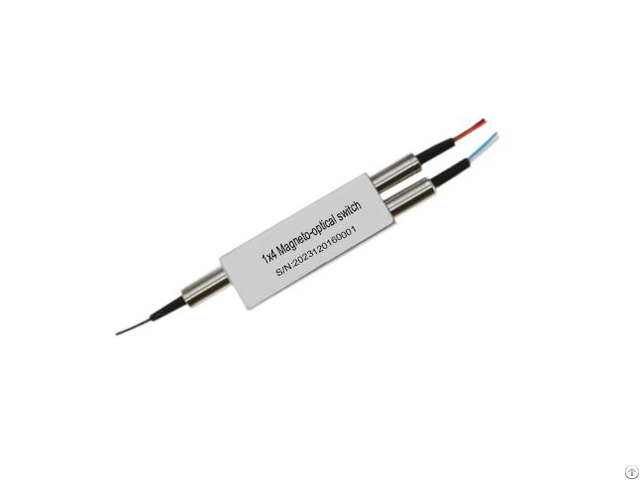

Magneto Optical Switch 1x4 - China

price: 1.00 Dollar US$

1×4 magneto optical switch connects to the optical path by connecting or blocking the optical signal; the switch has a non-mechanical configuration and is activated by an electrical control signal; the optical switch also has built-in circulator and isolator functions; the product is widely used in aerospace and military equipment .

FEATURES

· High switching speed · Better durability · High reliability · Low voltage drive · Fail-safe latching APPLICATIONS

· Optical channel blocking · Configurable Add/Drop · System monitoring, Test&measurement · Fiber-optics sensing system SPECIFICATIONS

Parameters Unit 1×4

Wavelength Range nm 1520~1580

Test Wavelength nm 1550

Insertion Loss dB 1.2

Return Loss dB ≥ 50 Crosstalk dB Bidirectional ≥ 20

Unidirectional ≥ 40

PDL dB ≤ 0.2

Repeatability dB ≤ ±0.01

Operating Voltage V 2.5±10%

Drive Current mA 110~190

Durability Cycles ≥ 30 Bllions

Switching Time us ≤ 100(typ:50)

Pulse Duration us 200~500

Switching Type n/a Latching

Optical Power mW ≤ 500

Operating Temperature ℃ -5~ +70

Storage Temperature ℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Dimension mm (L)32.0×(W)15×(H)7.5 ±0.2


Company Contact:


  • Phone: 8607713121055

  • Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China

  • Email: Email


Published date: April 14, 2024

  • Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
