Mm Sm Mems Voa Module - China

price: 1.00 Dollar US$

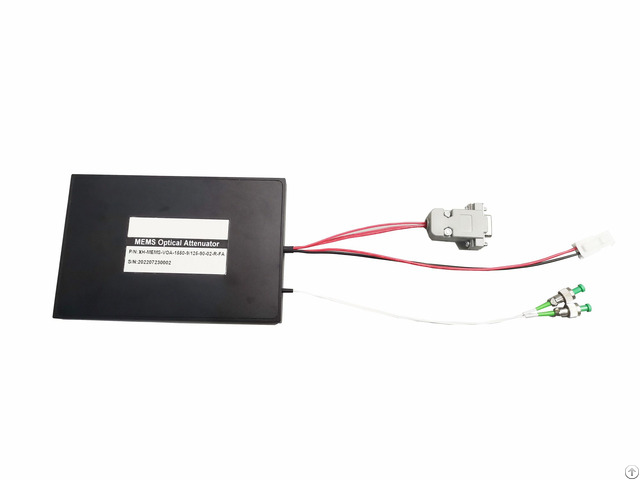

MEMS VOA module is a device used to attenuate optical power.

It is mainly used for index measurement of optical fiber systems, signal attenuation of short-distance communication systems, and system testing.

The optical attenuator is a very important fiber optic passive device.

It can attenuate the optical signal energy as expected according to the user’s requirements.

It is often used to absorb or reflect the optical power margin, evaluate the loss of the system and various tests.

.

At present, this series of optical attenuators has been widely used in the field of optical communications.

FEATURES

High stability High reliability Low insertion loss Rapid response APPLICATION

High transmission optical power Optical path power balance Channel transmission equalization SPECIFICATIONS

Operating Voltage(V) 8-12V(or 5V)

Working wavelength(nm) 1260-1650 or 980nm/1064nm

Central wavelength(nm) 1310/1550/1064

Attenuation range(db) 0-60

Insertion loss(dB) 0-30 ≤1.2

0-40 ≤2.0

0-60 ≤2.5

Decay stability(db) ±0.04(max)

Return loss (db) > 55

Operating temperature(℃) – 20~60

Storage temperature(℃) -40~80

Connection FC/SC/LC customizable

Fiber length customizable

control protocol RS232

Number channels customizable


Company Contact:


  • Phone: 8607713121055

  • Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China

  • Email: Email


Published date: April 14, 2024

  • Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
