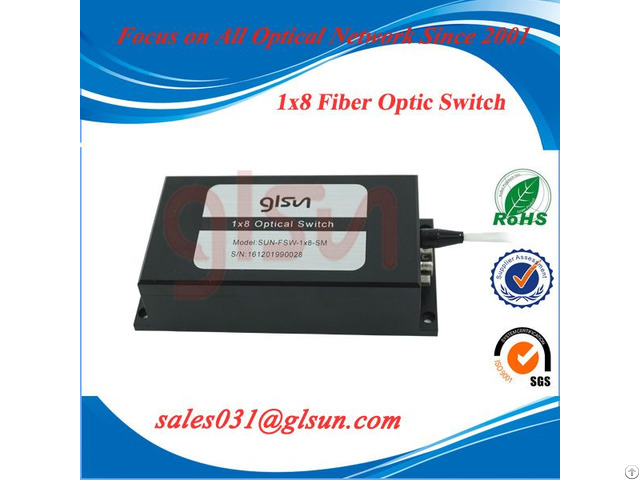

Multi Channel 1x8 Fiber Optic Switch - China
price: 500.00 Dollar US$
Product Description
Low Insertion Loss Multi-channel 1x8 Fiber Optic Switch - Introduction
SUN-FSW-1×8 Optical Switch is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
Features
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path Applications
·R&D in Laboratory
·System Monitoring
·OADM
·OXC Specification
Low Insertion Loss Multi-channel 1x8 Fiber Optic Switch - Specification
Parameters
Unit
SUN-FSW-1×8
Wavelength Range
nm
850±40 / 1300±40
1260 ~ 1650
Test Wavelength
nm
850 / 1300
1310 / 1550
Insertion Loss
dB
Typ: 2.2 Max: 2.5
Return Loss
dB
MM ≥ 30 SM ≥ 50
Crosstalk
dB
MM ≥ 35 SM ≥ 55
PDL
dB
≤0.15
WDL
dB
≤0.35
Repeatability
dB
≤±0.05
Operating Voltage
V
5.0 ± 5%
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
-20 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L)110×(W)95×(H)14 ±0.2
Company Contact:
- Posted By: GLsun Science And Tech Co., Ltd.
- Phone: 86-773-3116006
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China
- Email:
- Website: https://www.glsun.com/
Published date: April 27, 2018
- Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.
GLSUN holds many technical patents on optics.
Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
Since its establishment, GLsun has striven to be an innovative and advanced technical company.
The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.
GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.
The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
