Multi Functional Intelligent Handheld Network Cable Line Analyzer Vdsl Adsl Adsl2 Tester - China

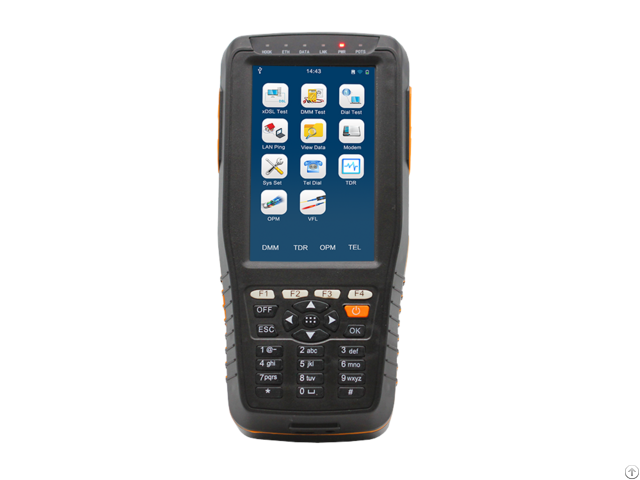

VDSL Tester X-5008 (ADSL/VDSL/OPM/ VFL/TDR Function/Tone Tracker, all in one unit) X-5008 VDSL tester specially designed for slid line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.

X-5008 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function.

It is one mufti-function tester with smart size, true color LCD and powerful management software as well as the 6600mAh rechargeable battery etc.

Features Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2

Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)

Supports Modem emulation and simulating login to Internet

Supports ISP login (user name / password) and IP Ping test (WAN PING Test, LAN PING Test)

Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

Connects to CO via alligator clip or RJ11

Rechargeable Li-ion Battery

Beep and LEDs alarm indications (Lower Power, PPP, LAN, xDSL)

Data memory fuction

LCD display, Menu operation

Auto shut off if no any operation on keyboard

Compliant with all known DSLAMs

Software management

Simple, portable and money-saved

Specification: ADSL2+

Standards ITU G.

992.1(G.

dmt), ITU G.

992.2(G.

lite), ITU G.

994.1(G.

hs), ANSI T1.413 issue #2, ITU G.

992.5(ADSL2+)Annex L

Up channel rate 0~1.2Mbps

Down channel rate 0~24Mbps

Up/Down attenuation 0~63.5dB

Up/Down noise margin 0~32dB

Output power Available

Error test CRC, FEC, HEC, NCD, LOS

Display DSL connect mode Available

Display channel bit map Available

ADSL

Standards ITU G.

992.1 (G.

dmt), ITU G.

992.2(G.

lite)

ITU G.

994.1(G.

hs), ANSI T1.413 Issue # 2 Be compatible with ADSL2+, ADSL standard.

DSL line attenuation

DSL line noise margin

DSL line up/down channel speed (Inter/Fast mode)

DSL line up/down maximum rate

DMT sub channel bit number: 0~15, and each sub channel frequency points

DSL line error number (CRC, HEC, FEC, LCD, OCD)

DSL line local output power

DSLAM information

Error Code Second

Impulse Noise Protection (INP)

Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a

DMM Test

DC voltage (V): 0~400

AC voltage (V): 0~400

Loop resistance(Ω): 0~20000

Capacitance (nF): 0~1000

Insulation resistance (MΩ): 0~50

Optical Power Meter ( Optional)

Measurement range: -70~+10dBm or -50~+26dBm

Wavelength 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

Visual Fault Locator (Optional)

Output Power 10mw

Wavelength 650nm ± 20nm

Tone Tracker (Optional)

With supplied accessories, it can do cable tracing and find the trend of the lines

TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix)

Test Range <2.5km

Dead Zone <1m

Resolution Rate 1m

General Specification

LCD 800x480 TFT

Power supply Internal Rechargeable 6600mAH Li-ion battery

Battery Duration 4 to 5 hours

Working temperature 0-40 oC

Working moisture 5%-90%

Dimensions 170mm×70mm×52mm
