Network Cyber Security Appliance Support Socket Lga 1200 H5 I7 I9 Xeon W1200 W1300 Cpu - China

F58811 is an 1u Network cyber security Appliance support socket LGA 1200/ H5, I7 I9 Xeon W1200 W1300 CPU, based on Intel® Rocket Lake family Intel® W580 chipset, Network security appliance, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.

2 multiple storages options and 4 ram slots MAX 128G RAM.

8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU or 450W redundant PSU.

It has high performance and flexibale extension and usually deploys into projects as network and cyber security including Unified Threat Management, IPS, IDP, SSL VPN, Load Balancing, Bandwidth Manager, Firewall, Bandwidth Management, Gateway security, WAN acceleration, Network Access Control, Web Filter, AntiVirus Wall, Core Switch, Server Load Balancing, Anti-Spam.

Features

Supports Intel socket LGA1200/ H5, i3/i5/i7 Core, Xeon W-1200/1300 processor

Intel W580 chipset(Rocket Lake family)

Four 288pin 2933/3200MHz DDR4 slots, up to 128GB

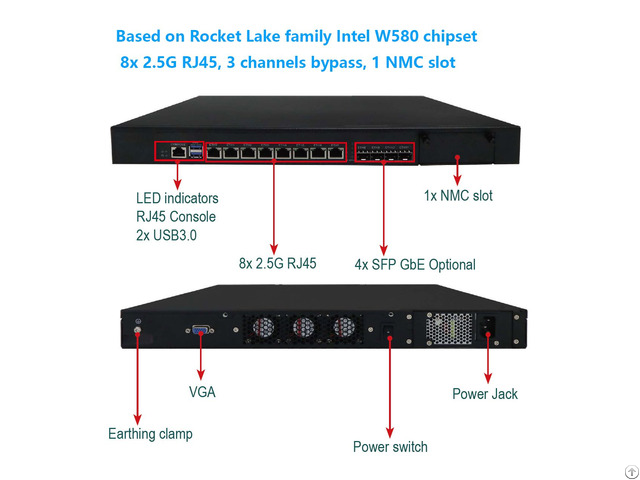

Eight Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass

One extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces

Supports SATA3.0, mSATA, M.

2 multiple storages options

Front USB3.0, Console interface and LED indicators

Specifications

Motherboard

CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

Intel LGA 1200 socket/ H5 socket

Chipset Intel W580

System memory Four DDR4 slots, up to 128GB

Storage

Interface Two SATA3.0 connectors, one mSATA and one M.

2 slot

Hard Drive Supports one 3.5/2.5" HDD tray

Ethernet

LAN Port Eight 2.5G RJ-45 ports

Ethernet Chip Intel® Ethernet Controller I225-V

BYPASS Optional 3 channels BYPASS

Optical ports Four 1G SFP(Optional)

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0

COM One RJ-45 COM

Indicator One Power LED, one HDD LED

LCM module Optional 2x16 characters LCM display module

Video Built-in one VGA interface, support hot plug(Internal)

Expansion One NMC slot for extension NIC

Power supply

Power consumption 250W power supply

Power input 100 ~ 240V AC input

Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting

Operate Temperature -10°C ~ 50°C

Storage Temperature -20°C ~ 75°C

Operate Humidity 5% ~ 85% non-condensing @ 40°C

Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM

Front panel PVC/Aluminum front panel(OEM/Neutral)

Construction 1u chassis, Heavy duty metal

Dimensions (D x W x H) 450x430x45 mm

Weight 6.2 kg

Ordering informations

F58811 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, socket LGA 1200 H5, 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU

F58811-P2 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 450W redundant PSU

F58811-F4 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, socket LGA 1200, 8x 2.5G RJ45, 3 channels bypass, 4x 1G SFP, 1 NMC slot, 250W PSU
