Optical Fiber Tester Mini Otdr Test With Power Meter Opm Vfl Light Source - China

price: 380.00 Dollar US$

Optical Fiber Tester Mini Otdr Test With Power Meter Opm Vfl Light Source

Products Photos Catalog Optical Fiber Tester Photos Catalog

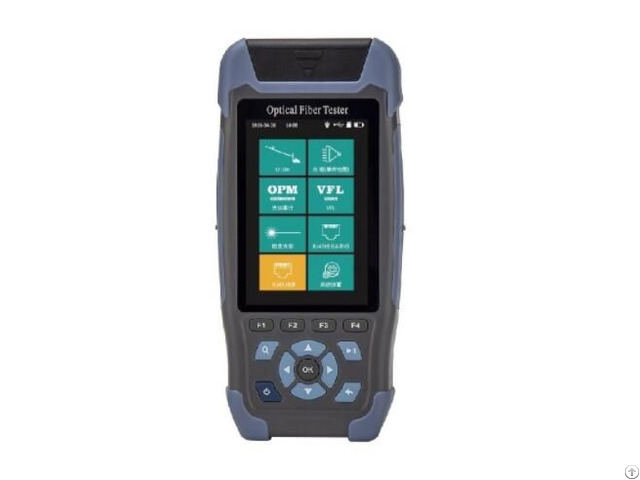

Optical Fiber Tester Mini OTDR Test with Optical Power Meter OPM VFL Light Source

Optical Fiber Tester Mini OTDR is a unique mainly designed for construction and maintenance of telecommunication and CATV networks.

It can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems.

Comparing with a regular OTDR, it is more compact in size and easier for field use.

Mini-Pro OTDR Fiber Type Singlemode

Dynamic Range 24dB/22dB

Event Blind Zone 3m

ATT Blind Zone 8m

Test Range 500m~64km

Pulse Width 3ns~10us

Ranging accuracy ±(1m+ Sampling interval +0.005%×Test distance)

Loss accuracy ±0.05dB/dB

Sampling Points 16k~128k

Sampling resolution 0.05m~8m

Reflection accuracy ±3dB

Data Storage Internal: ≥600;External: TF Card

Laser Safety Level Class 2

File format SOR Standard file format

Connector FC/UPC(Interchangeable SC, ST)

OPM

Wave Range 800nm~1700nm

Interface Type Universal Joint FC/SC/ST

Test Range -50dBm~+26dBm

Uncertainty ±5%

Frequency Identification CW/270/330/1k/2kHz

Calibration wavelength 850/980/1300/1310/1490/15 50/1625/1650nm

LS

LD Type FP-LD

Wavelength 1310nm/1550nm±20nm

Output Power ≥-5dBm

Modulation Frequency 270/330/1k/2kHz

Stability CW, ±0.5dB/15min(Test after 15 minutes of preheating)

Connector FC/UPC(Interchangeable SC, ST)

VFL

Wavelength 650nm±20nm

Output Power ≥10mW

Mode CW/1Hz/2Hz

Connector FC/SC/ST

RJ45 Cable Length Measurement

Test Range 300m

Other Parameters

Display 3.5 inch Color LCD

Data Interface Micro USB

External storage TF Card

Power Supply Polymer Li-Battery: 3.7V, 4000mAhAdapter: 5VDC, 2A

Battery Life Standby>20h;Measuring time>12h

Operating Temperature -10ºC~+50ºC

Storage Temperature -40ºC~+70ºC

Relative Humidity 0~95%Non Condensing

Size 173mm×82mm×37mm

Weight ≤350g


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 26, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
