Planar Lightwave Circuit Plc Splitter - China

Planar Lightwave Circuit (PLC) Splitter is to use silica optical waveguide technology with an even split ratio from one input fiber to multiple output fibers.

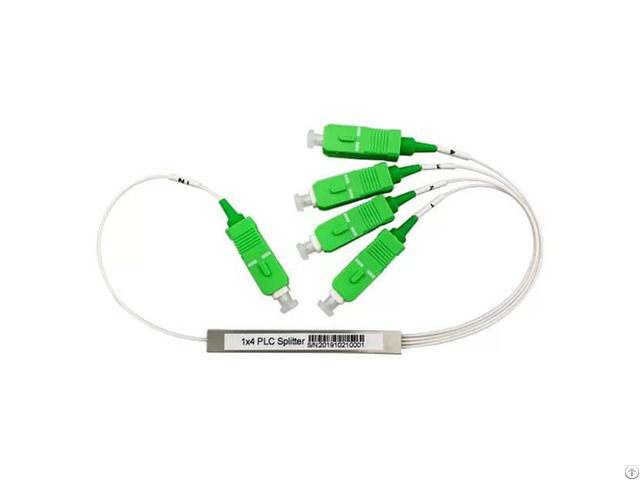

This Mini PLC Splitter is a 1×4 steel tube PLC splitter, with 1 input and 4 output fibers with an even split ratio across all fibers regardless of input wavelength.

Micro module PLC Splitters are availble for 900µm loose tube with or without connector terminated.

All Micro PLC Splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.

Description

Model No: FLK-FPM-104

Steel tube Size: 60x7x4mm

Fiber Type: SM G657 - A1

Wavelength: 1260nm-1650nm

Splitter Ratio: 1×4

Input Cable: 1xSC/APC 1m length

Output Cable: 4xSC/APC 1m length

Insertion Loss (dB) Max: <7.2

Uniformity (dB) Max: <0.6

PDL (dB) Max: <0.2

Directivity: 55dB

Return Loss (dB) Min: 50 (55)

Operating Temperature: -40 ~ +85°C

Power Handling: 300mW Feature

Good uniformity and low insertion loss;

Low Polarization Dependent Loss;

High Polarization Extinction Ratio &

Excellent Uniformity;

Excellent Environmental & Mechanical Stability

Small size, with the splitter type of steel tube

Ideal for EPON, GPON, FTTH/FTTX network

Stability Telecordia GR-1221 and GR-1209;
