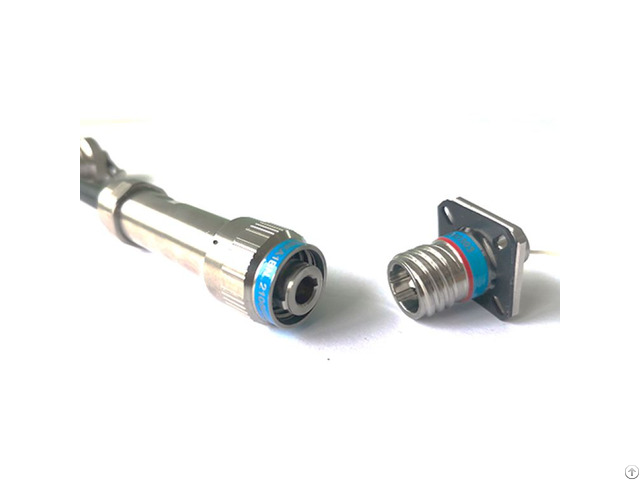

Pm Polarization Maintaining Series Connector - China

Features Three-headed threaded quick connect with anti-loose structure Three-key circumferential identification and positioning, enabling blind mating and error-proof insertion The outer shell can be made of different materials and coatings to adapt to different environmental requirements Features resistance to high-intensity vibrations High-precision mating between the head and the socket, ensuring excellent repeatability of extinction ratio and low insertion loss for polarization-maintaining fiber optic cable assemblies.

Mechanical Properties • Mechanical Life: 500 cycles of insertion and extraction

• Impact Resistance: 980m/s²

• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 147m/s² Environmental Performance • Temperature Range: -55℃ to +85℃ (based on fiber optic cable temperature)

• Salt Spray Resistance: Type K: 500 hours Type F: 48 hours Type W: 500 hours

• Airtightness (Applicable to Polarization-Maintaining Fiber Optic Cable Assemblies): Gas Leakage Rate ≤ 1×10-9 Pa.

m3/s, with an internal and external pressure difference of 1 atmosphere Optical Performance • Insertion Loss: ≤ 0.6dB

• Extinction Ratio: ≥ 20dB
