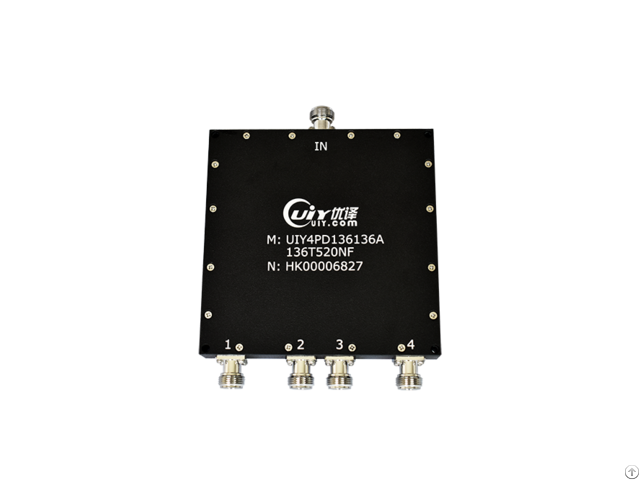

Rf Component 136mhz 520mhz 4 Way Power Divider Splitter With Sma F Connector - China
price: 130.00 Dollar US$
Type:
Power Splitter
Model Number:
UIY4PD12071B136T520SF
Place of Origin:
Shenzhen
Brand Name:
UIY
Frequency Range:
136~520MHz
Insertion Loss:
0.6dB(Split 6dB)
Isolation:
18dB
VSWR:
1.35
Phase Unbalance:
≤3 degree
Amplitude Unbalance:
≤0.5dB
Forward / Reverse Power:
50W / 2W
Connector Type:
SMA-F
Temperature:
-40~+85℃
Dimension:
136.4*119*23mm
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: August 26, 2021
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
