Ribbon Fiber Optic Thermal Stripper X17 - China

price: 510.00 Dollar US$

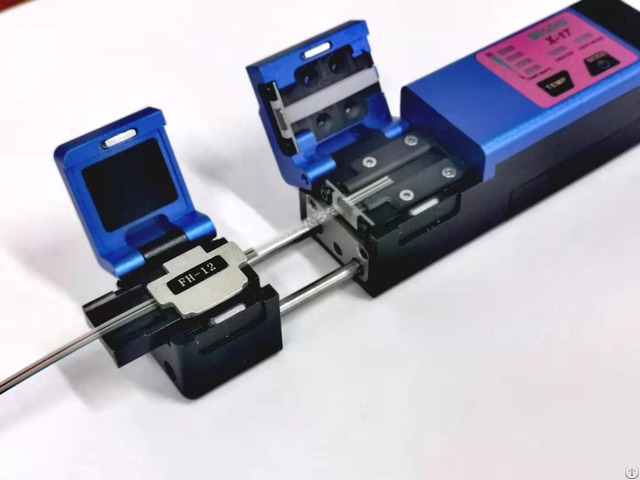

Ribbon Fiber Optic Thermal Stripper X17

Products Photos Catalog Ribbon Fiber Optic Photos Catalog

Shinho X-17 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers.

A good and reliable tool for ribbon fiber splicing work.

Features Apply to single and ribbon (up to 12 cores) fibers 4 seconds fast heating, 4 levels temperature optional Normal and Power saving modes Optional Pluggable Li-battery, support more than 300 cycles Small size and light weight, conenient to carry Rugged and durable for any tough environment Easy to operate and maintain, near zero failure.

Reach CE, ROHS international standards

Specifications

Fiber material Silica glass Coating material UV curable resin Coating diameter Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm Cladding diameter 125µm Coating stripping length Max 30mm Fiber types Single fiber, ribbon fiber Fiber holder type FH-2, FH-4, FH-6, FH-8, FH-10, FH-12, FH-250, FH-900, FH-U (for 250/900µm fibers) Heating mode Normal mode, power saving mode Temperature setting Normal mode: 80℃, 95℃ 110℃, 130℃.

Power saving mode: 70℃, 80℃, 95℃, 110℃.

Typical heating time Normal mode: 4~5secs Power saving mode: 5~6secs Battery capacity 800mAh Li-battery.

Support more than 300 cycles stripping once fully charged Power supply AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A Operation environment Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0℃ ~ +40 ℃, Wind speed: 15m/s maximum Dimension/Weight 138mm (L)×34.5mm (W)×35mm (H) /300g(inlcuding battery) Standard Accessories ① Thermal stripper ② AC adapter ③ Cleaning brush


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 18, 2020 - Modified date: March 18, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
