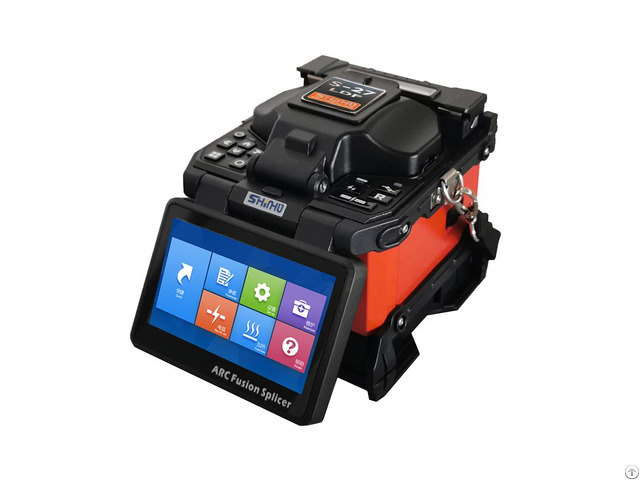

S 27 Large Diameter Fiber Fusion Splicer Arc Splicing Machine - China
price: 7800.00 Dollar US$
Features
Applicable to cladding diameter 125~250μm fiber
Accurate alignment, world standard fusion loss
14s splicing time, 24s heating time for 40/60mm tube
Applicable to different types fibers (SM/MM/DS/NZDS)
Ruggedized body, waterproof, anti-dust, anti-shock
Pluggable Li-battery, support separate charging
Easy to maintenance, easy to replace the electrodes
USB port for software upgrading, records exporting
Support 4000/100 groups fusion records/fusion images
Comply with CE/Rohs international standard S-27 Fusion Splicer Data Sheet Alignment method Clad to clad Applicable fiber SM(G.
652), MM(G.
651), DS(G.
653), NZDS(G.
655) Cladding diameter 125~250µm Coating diameter 250~500µm Typical splice loss SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB Return loss >60dB Splicing program 40 groups Operation mode Manual/ Automatic Auto- heating Available Typical splice time 14seconds Typical heating time 24 seconds for60mm/40mm heating tube Fiber magnification X orY single fiber image120X, X andY double image 60X Viewing display Dual high sensitivitycamera, 5 inch 800*480 LCD Monitor Data storage 4000 groups data records and 100 group images Loss evaluation Available Tension test 1.8~2.2N Interface GUI menu interface, easy for operation Battery capacity 5200mAh Li-battery, 120 cycles splicing and heating Power supply Adaptor, input: AC100-240V(50/60HZ), output: DC11-13.5V Electrode life >3000 times discharge (125um), >1000 times discharge (250um) Terminals Micro-USB 2.0 port, forsoftwareupgrading, records exporting Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC ;Wind: max 15m/s Dimension/Weight 155mm (L)×144mm (W)×155mm (H) /2.3kg (incuding battery)
Company Contact:
- Posted By: Shanghai Xianghe Fiber Communication Co.,Ltd
- Phone: +8613681973689
- Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China
- Email:
- Website: https://www.xhfiber.com
Published date: March 26, 2020
- Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.
we are devoted to supplying high quality products and reliable services to customers all over the world.
We could rank top 3 among all Chinese fusion splicer manufacturers now.
Moreover we provide professional after sale service to our customers.
Currently we have developed 11 models fusion splicers , and get good market feedback.
