Sfp Transceiver Hot Pluggable 1 25gb S 20km Duplex Lc 3 3v 1310nm Fp Ld Single Mode Ddm - China

price: 8.00 Dollar US$

Sfp Transceiver Hot Pluggable 1 25gb S 20km Duplex Lc 3 3v 1310nm Fp Ld Single Mode Ddm

Products Photos Catalog Sfp Transceiver Photos Catalog

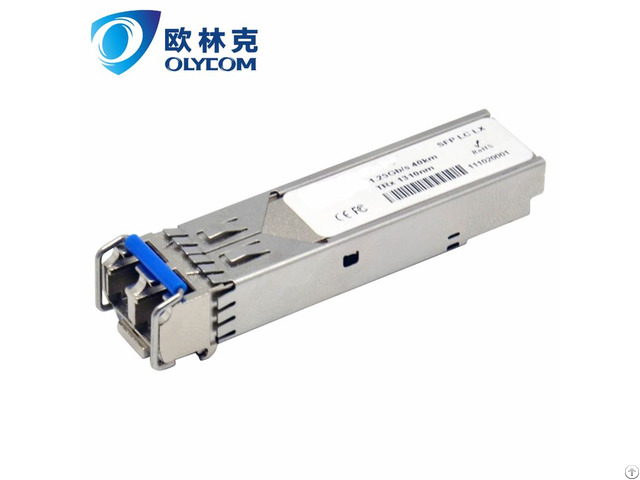

OLYCOM’s OSPL1G20D Transceiver is a high performance, cost effective module which have a duplex LC optics interface.

Standard AC coupled CML for high speed signal and LVTTL control and monitor signals.

The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20km application.

Features:

1 - Up to 1.25Gb/s Data Links

2 - Hot-Pluggable

3 - Duplex LC connector

4 - Up to 20km on 9/125μm SMF

5 - 1310nm FP laser transmitter

6 - Single +3.3V Power Supply

7 - Monitoring Interface Compliant with SFF-8472

8 - Maximum Power <1W

9 - Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

10 - RoHS compliant and Lead Free

Applications:

1 - Metro/Access Networks

2 - 1.25 Gb/s 1000Base-LX Ethernet

3 - 1×Fibre Channel

4 - Other Optical Links


Company Contact:


  • Phone: 86-18088882285

  • Address: Nanshan district, Shenzhen , Guangdong , China

  • Email: Email


Published date: October 8, 2016

  • Business Description: Olycom is a manufacturer of fiber optic.

    Main product are fiber media converter, industrial POE fiber switch, SFP transceiver and video optical converter.
