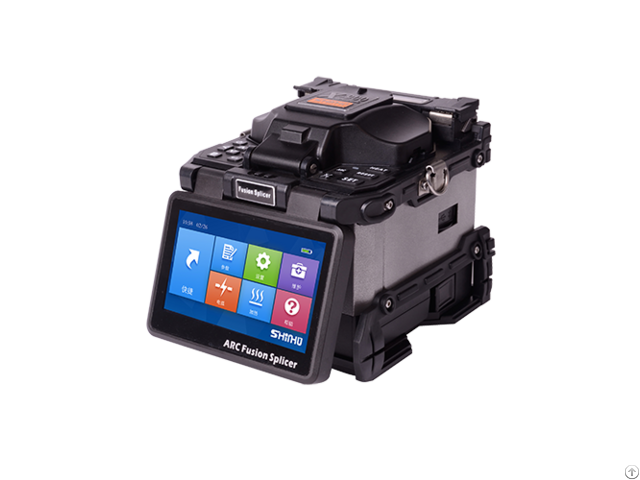

Shinho 6 Motors Core Alignment Fiber Fusion Splicer - China

Features *6 motors accurate core to core alignment

*Automatic fiber type identification

*6s stable splicing & 18s fast heating

*Automatic & real-time ARC calibration

*Upgraded CPU with 30% power saving

*Real-time heating temperature monitoring

*Anti-shock, Anti-dust and waterproof

*Apply to bare fibers, drop cables, patch cords etc.

X-900 Fusion Splcier Data Sheet Applicable fiber SM(G.

652), MM(G.

651), DS(G.

653), NZDS(G.

655), others(including G.

657)

Applicable fiber SM(ITU-T G.

652), MM(ITU-T G.

651), DS(ITU-T G.

653), NZDS(ITU-T G.

655)

Diameter of cladding 80 -150μm

Diameter of coating 160 - 900μm

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss >60db

Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-heating Available

Typical splicing time 6 seconds

Tube heating time 18 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification 250X(X or Y view), 125X(X and Y view)

Viewing method and display 2 CMOS cameras, 5.0 inch color LCD monitor

Storage of splice result 4000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easier operation

Battery capacity 5200mAh Li-battery, typical 300 cycles(splicing and heating), support independent charging

Power supply Adaptor, input: AC100-240V(50/60HZ), output: DC11-13.5V

Electrode life More than 4000 ARC discharges, can be replaced conveniently

Terminals USB 2.0 port, for uploading splice results and upgrading software

Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -25ºC~+50ºC;Wind speed: max 15m/s

Dimension 160mm(L)x136mm(W)x140mm(H )

Weight 2.45kg including battery

Delivery leading period

Within 3 working days for small orders after receiving full payment;

Kindly consult us for bulk orders.

Shipment

Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;

By sea or by aircargo for bulk orders.

After-sales Services

We guarantee that every fusion splicer is tested carefully and works very well before shipment.

We strive for 100% customer satisfaction on every sale we complete.

We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.

We guarantee all our fusion splicers for 24 months from the date customers receive them.

Other parts for six months.

During the warranty period, we can repair or replace the defective parts for free.

After the warranty time, we can also repair the defective parts, but only charge for parts.
