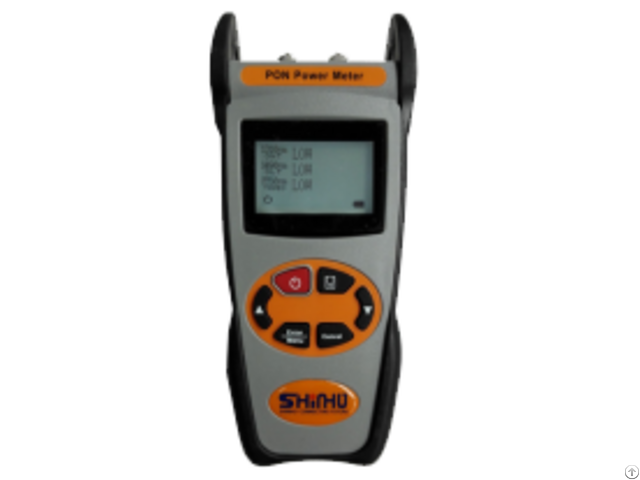

Shinho High Quality X 5006 Pon Power Meter - China
price: 210.00 Dollar US$
Features Simultaneous measurement at EPON/GPON/GEPON for 1310nm, 1490nm, 1550nm on the fiber
Used in Burst mode measurement of1310nm upstream
Convenience for threshold setting, which can set the threshold on the tester
USB communication port enables data transfer to a PC
Offers up to10 different threshold sets in total
User self-calibration can be retrieved in computer through the software.
10 minutes Auto-off function can be activated or deactivated with keypad operation.
X-5006 PON Power Meter Data Sheet Model PON power meter 1310nm 1490nm 1550nm
Pass Zone(nm) 1260~1360 1470~1505 1535~1570
Isolation (dB) >40@1490 >30@1310 >40@1310
Isolation(dB) >40@1550 >40@1550 >40@1490
Measurement Range(dBm) -40~+10 -40~+10 -40~+20
Measurement Accuracy
Connatural uncertainty(dB) ±0.5
Linearity(dB) ±0.1
Passing through insertion Loss(dB) <1.5
General Information
Detector Type InGaAs
Optical Connector FC/SC Interchangeable
Fiber Type 9/125um
Display LCD: 128*64
Measurement Unit dB/dBm/xW
Resolution (dB) 0.01
Power Supply 3 AA1.5V battery
Operation Temperature(ºC) -10~60
Storage temperature(ºC) -25~70
Dimension(mm) 200 X90 X50
Weight(g) 285
Company Contact:
- Posted By: Shanghai Xianghe Fiber Communication Co.,Ltd
- Phone: +8613681973689
- Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China
- Email:
- Website: https://www.xhfiber.com
Published date: March 26, 2020
- Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.
we are devoted to supplying high quality products and reliable services to customers all over the world.
We could rank top 3 among all Chinese fusion splicer manufacturers now.
Moreover we provide professional after sale service to our customers.
Currently we have developed 11 models fusion splicers , and get good market feedback.
