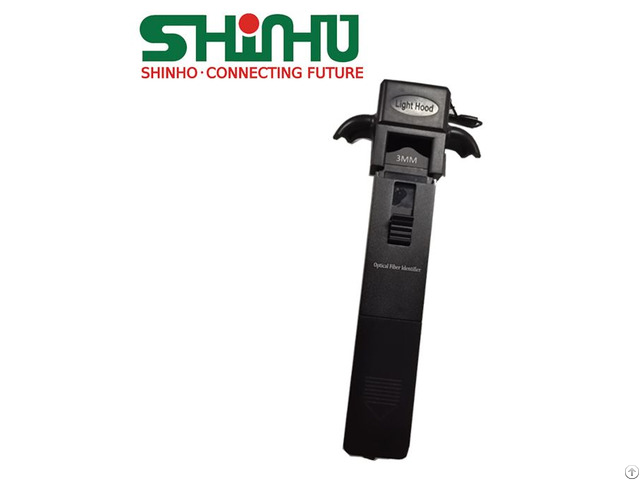

Shinho High Stability Lossless X 5004 Optical Fiber Identifier - China

Features

*Easy-to-usewith "ONE KEY" operation

*Displays the relative core power

*Easy-to-replace adaptors Durable metal housing and quality construction

*Lower power indication It's easy tocarry and loss adaptors can be avoided with new adaptors box

*Efficiently identifies the fiber transmission direction and frequency tone (270Hz, 1 KHz, 2 KHz) with audible warning X-5004 Fiber Identifier Data Sheet Identified Wavelength Range 800-1700 nm

Identified Signal Type CW, 270Hz±5%, 1kHz±5%, 2kHz±5%

Detector Type 1mm InGaAs 2pcs

Adapter Type 0.25, 0.9, 2.0, 3.0

Signal Direction Left & Right LED

Singe Direction Test Range(dBm, CW/0.9mm bare fiber) -46~10(1310nm)

-50~10(1550nm)

Signal Power Test Range(dBm, CW/0.9mm bare fiber) -50~+10

Signal Frequency Display (Hz) 270, 1k, 2k

Frequency Test Range(dBm, Average Value) 0.9, 2.0, 3.0 -30~0 (270Hz, 1KHz)

-25~0 (2KHz)

0.25 -25~0 (1KHz, 2KHz)

-20~0 (2KHz)

Insertion Loss(dB, Typical Value) 0.8 (1310nm)

2.5 (1550nm)

Alkaline Battery(V) 2pcs AAA batteries

Operating Temperature(ºC) -10-+60

Storage Temperature(ºC) -25-+70

Dimension (mm) 196X30.5X27

Weight (g) 195

Packing&Shipping

Delivery leading period

Within 3 working days for small orders after receiving full payment;

Kindly consult us for bulk orders.

Shipment

Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;

By sea or by aircargo for bulk orders.
