Shinho S 16 Hot Selling New Design Stable Performance Fiber Fusion Splicer - China

price: 30.00 Dollar US$

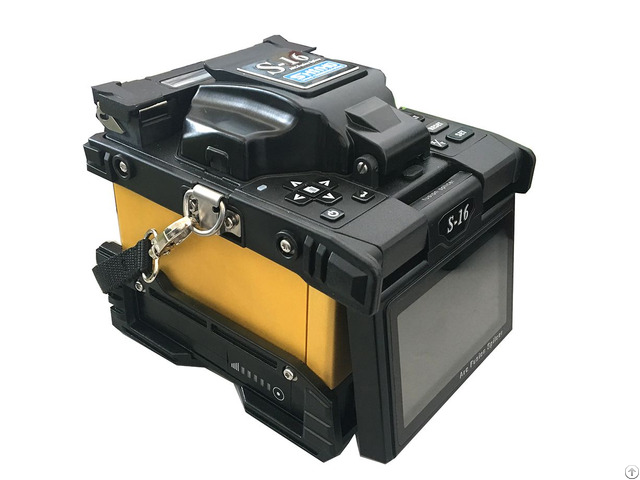

Shinho S 16 Hot Selling New Design Stable Performance Fiber Fusion Splicer

Products Photos Catalog Shinho Stable Photos Catalog

6s for splicing and 18s for heating

Core to core alignment technology

Anti-shock, Anti-dust and waterproof

Automatic ARC value & position calibration

USB port for software updating and data records exporting

5200mAh Li-battery, more than 250 cycles splicing&heating

Multi-function holder clamps, apply to bare fiber, pigtail, patch cords, drop cable etc.

S-16 Fusion Splcier Data Sheet Applicable fiber SM(G.

652), MM(G.

651), DS(G.

653), NZDS(G.

655), others(including G.

657)

Diameter of cladding 80 -150μm

Diameter of coating 160 - 900μm

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss >60db

Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-heating Available

Typical splicing time 6 seconds

Tube heating time 18 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification 250X(X or Y view), 125X(X and Y view)

Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result 4000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easier operation

Battery capacity 5200mAh Li-battery, typical 250 cycles(splice and tube heat)

Power supply Adaptor, input: AC100-240V(50/60HZ), output: DC11-13.5V

Electrode life More than 4000 ARC discharges, can be replaced conveniently

Terminals USB 2.0 port, for uploading splice results and upgrading software

Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s

Dimension 160mm(L)x136mm(W)x140mm(H )

Weight 2.2kg including battery

Package Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 18, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
