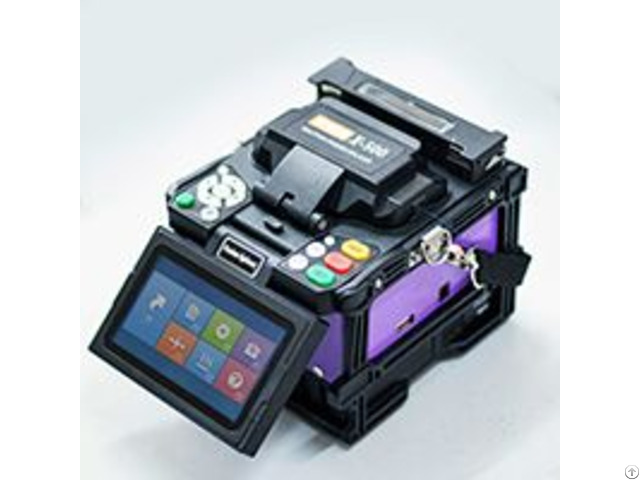

Shinho X 500 Cheap Price High Performance Handheld Multifunction Arc Fusion Splicer - China

price: 750.00 Dollar US$

2 Years' Warranty Features *7s typically for splicing and 26s for heating, *Fiber core max.

magnifications up to 250X, *Electrodes discharging more than 4000 times, *Integrated heater, easy and convenient to operate, *USB port for software updating and data records exporting, *PAS image digital processing system, core to core alignment, *ARC calibrated by temperature and air pressure automatically, *360° rubber armor protects machine from shock, water and dust, *5200mAh and pluggable Li-battery, typical 250 cycles splicing and heating, *Multi-function holder clamps, suitable for bare fibers, drop cables, patch cords etc.

X-500 Fusion Splcier Data Sheet Applicable fiber SM(G.

652), MM(G.

651), DS(G.

653), NZDS(G.

655), others(including G.

657)

Fiber count Single

Applicable fiber dimensions Cladding diameter: 80 -150μm, Coating diameter: 160 -900μm

Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss >60db

Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-heating Available

Typical splicing time 7 seconds

Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification 250X(X or Y view), 125X(X and Y view)

Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result 4000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easier operation

Battery capacity 5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery

Power supply Adaptor, input: AC100-240V(50/60HZ)

Electrode life More than 4000 ARC discharges, can be replaced conveniently

Terminals USB 2.0 port, for uploading splice results and upgrading software

Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s

Dimension 149mm(L)x120mm(W)x127mm(H )

Weight 1.9kg including battery


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 10, 2020 - Modified date: March 10, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
