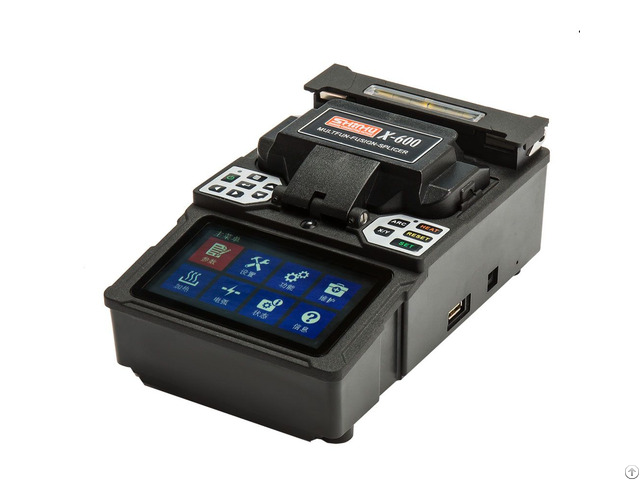

Shinho X 600 Handheld Fiber Fusion Splicer - China

Shinho X-600 Fusion Splicer Kit

Product Description Applicable fiber SM (ITU-T G.

652), MM (ITU-T G.

651), DS (ITU-T G.

653), NZDS (ITU-T

G.

655), others(including G.

657) Cladding diameter 80 -150μm

Coating diameter 160 - 900μm

Typical splice loss SM 0.02dB, MM 0.01dB, DS 0.04dB, NZDS 0.04dB

Return loss <60dB

Cleaved length 10~16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating

250~1000μm ) Splicing program 40 groups

Operate mode Manual, Automatic

Auto-Heat Available

Typical splicing time 7 seconds

Heating time 20 seconds for 60mm, 40mm shrinkable sleeve

Magnification 250 times for single display, 125 times for double display

Photoelectric system Two high sensitive cameras, 4.3' 480×280 colorful LCD

Splicing data record Storing up to 4000 groups of records

Loss evaluation Available

Tension test 1.8~2.2N

Interface GUI menu interface, easy operation

Battery capacity 5200mAh, 250 times fusion and heating, pluggable, real-time power monitor

Power supply Adaptor, input: AC 100-240V ( 50/60HZ ), output: DC 11~13.5V

Electrodes lifetime More than 4000 times splicing, electrodes can be replaced conveniently

External port USB2.0 port, used to derive splicing record data, software upgrade

Operate environment Altitude: 0~5000m; Relative humidity: 0~95%; Temperature: -10ºC~+50ºC;

Wind speed: max 15m/s Volume/Weight 200mm(L)×123mm(W)×95mm( H) / 1.60kg (including battery)
