Shinho X 700 Fiber Splicing Machine - China

price: 950.00 Dollar US$

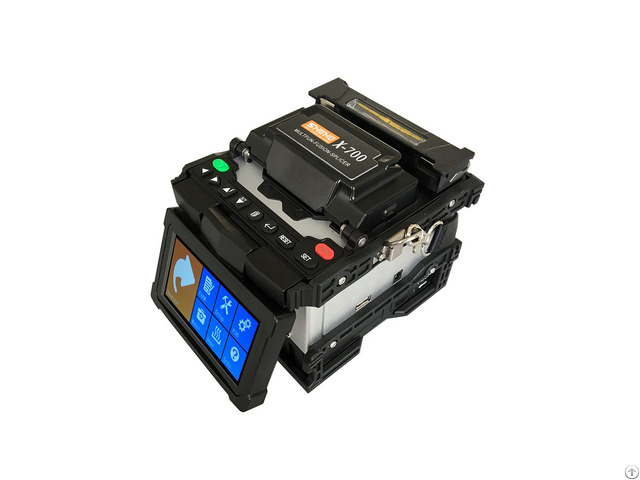

Shinho X 700 Fiber Splicing Machine

Products Photos Catalog Shinho 700 Fiber Photos Catalog

Features X-700 Fiber fusion splicer is with active V-groove and no-mirror design, it has flexible and stable performance when aligning fibers.

It is with classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high quality components.

It is suitable for both indoor and outdoor fiber splicing projects.

X-700 Fusion Splcier Data Sheet Applicable fiber SM(ITU-T G.

652), MM(ITU-T G.

651), DS(ITU-T G.

653), NZDS(ITU-T G.

655) Diameter of cladding 80 -150μm Diameter of coating 160-900μm Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss > 60dB

Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter: 250-1000um)

Splicing program 40 groups

Operate mode Automatic/Manual

Auto-heating Available

Typical splicing time 6 seconds

Typical heating time 20 seconds

Fiber magnification 250X (X or Y view), 125X (X and Y view)

Display screen 4.3 inch color LCD monitor

Records storage 4000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easy for operation

Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging

Power supply Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V

Electrodes life More than 4000 ARC discharges, can be replaced conveniently

Ternimal USB2.0 port, for software upgrading and records exporting

Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC, Wind speed: Max 15m/s

Dimension 160mm(L) * 136mm(W) * 140mm(H) (including rubber armor)

Weight 2.10kg (including battery)


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 10, 2020 - Modified date: March 10, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
