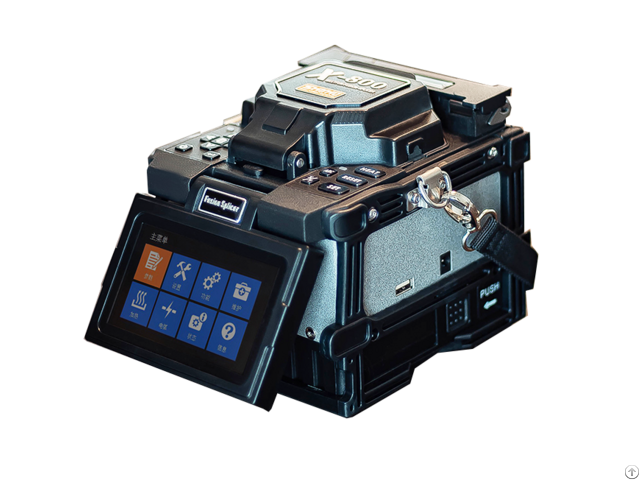

Shinho X 800 Fiber Optical Fusion Splicer Arc Welding Machine - China

Product Description Applicable fiber SM (ITU-T G.

652), MM (ITU-T G.

651), DS (ITU-T G.

653), NZDS (ITU-T

G.

655), others(including G.

657)

Cladding diameter 80 -150μm

Coating diameter 160 - 900μm

Typical splice loss SM 0.02dB, MM 0.01dB, DS 0.04dB, NZDS 0.04dB

Return loss <60dB

Cleaved length 10~16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating

250~1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-Heat Available

Typical splicing time 6 seconds

Heating time 20 seconds for 60mm, 40mm shrinkable sleeve

Magnification 300 times for single display, 150 times for double display

Photoelectric system Two high sensitive cameras, 5.7' 640×480 colorful LCD

Splicing data record Storing up to 4000 groups of records

Loss evaluation Available

Tension test 1.8~2.2N

Interface GUI menu interface, easy operation

Battery capacity 5200mAh, 250 times fusion and heating, pluggable, real-time power monitor

Power supply Adaptor, input: AC 100-240V ( 50/60HZ ), output: DC 11~13.5V

Electrodes lifetime More than 4000 times splicing, electrodes can be replaced conveniently

External port USB2.0 port, used to derive splicing record data, software upgrade

Operate environment Altitude: 0~5000m; Relative humidity: 0~95%; Temperature: -10ºC~+50ºC;

Wind speed: max 15m/s

Volume/Weight 157mm(L)×136mm(W)×140mm (H) / 2.1kg (including battery)
