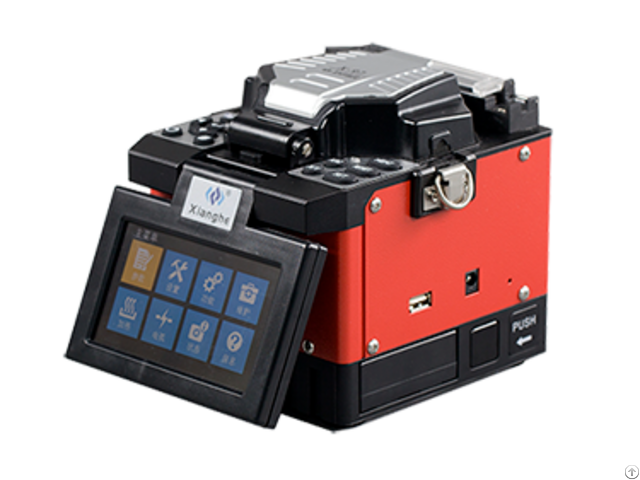

Shinho X 97 Good Service 2 Years Warranty Fusion Splicer Designed For Metro Area Network - China

price: 950.00 Dollar US$

Shinho X 97 Good Service 2 Years Warranty Fusion Splicer Designed For Metro Area Network

Products Photos Catalog Shinho Warranty Fusion Photos Catalog

Product Description Fiber count Single

Applicable fiber SM(G.

652), MM(G.

651), DS(G.

653), NZDS(G.

655), others(including G.

657)

Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss >60db

Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-heating Available

Typical splicing time 7 seconds

Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification 250X(X or Y view), 125X(X and Y view)

Viewing method and 2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result 4000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easier operation

Battery capacity 5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery

Power supply Adaptor, input: AC100-240V(50/60HZ)

Electrode life More than 4000 ARC discharges, can be replaced conveniently

Terminals USB 2.0 port, for uploading splice results and upgrading software

Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s

Dimension 149mm(L)x120mm(W)x127mm(H )

Weight 1.9kg including battery


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 10, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
