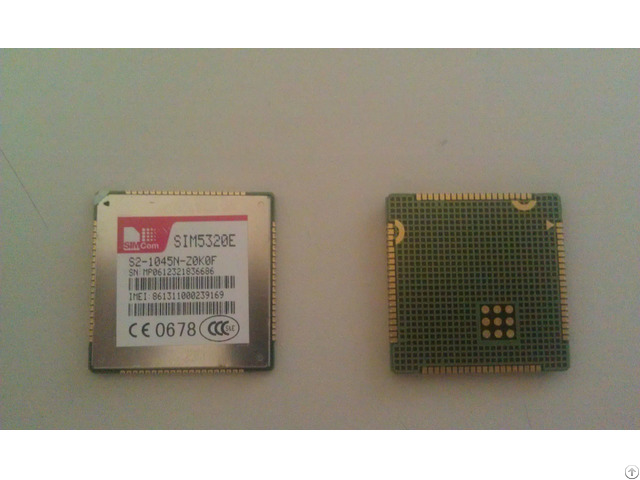

Simcom Sim5320 Wcdma 3g Module - China

The SIM5320 series has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc.

With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTT PS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.

It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

With certification for

The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc.

With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTT PS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.

It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

With CE(SIM5320E), FCC(SIM5320A), TELEC (sim5320E)

General features

?

SIM5320A: Dual-Band UMTS/HSDPA 850/1900MHz



SIM5320E: Dual-Band UMTS/HSDPA 900/2100MHz

Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12

* EDGE multi-slot class 12

* WCDMA 3GPP release 5

* Output power

- UMTS 850/1900: 0.25W

- UMTS 900/2100: 0.25W

- GSM850/GSM900: 2W

- DCS1800/PCS1900: 1W

* Control Via AT Commands

* Supply voltage range: 3.3V~ 4.2V

* Extended Operation temperature: -30°C to +85°C

* Dimension: 30 * 30* 2.9g

* Weight: 5.6

SIM5320J: Dual-Band UMTS/HSDPA 850(800)/2100MHz



Specifications for GPS

Specifications for Data transfer

* HSDPA

- Max.

3.6Mbps(DL)

* WCDMA

- Max.

384Kbps(DL), Max.

384Kbps(UL)

* EDGE Class:

- Max.

236.8Kbps(DL), Max.

118Kbps(UL)

* GPRS

- Max.

85.6Kbps(DL), Max.

42.8Kbps(UL)

* CSD

- GSM data rate 14.4Kbps

- WCDMA data rate 57.6Kbps

- WCDMA 64kbps CSD for Video call

Specifications for SMS

* Point to point MO and MT

* Text and PDU mode

Specifications for Network Identity and Time zone (NITZ)

* Support in GSM and WCDMA

Other features

* USB Driver for Microsoft Windows 2000/XP/Vista

* USB Driver for Windows CE/Mobile

* USB Driver for Linux 2.6

* Firmware update via USB

* MMS

* TCP/IP

* FTP/FTPS/HTTP/HTTPS/SMTP/ POP3/DNS

* FOTA

* eCall Reday

Interfaces

* USB2.0

* UART

* SIM card

* SPI

* I2C

* Keypad

* Constant current sink

* GPIO

* RTC

* ADC

Certifications

SIM5320A * FCC

* PTCRB

SIM5320E * CE

* GCF

* ICACA

SIM5320J * Telec

* JATE

* PCM

* A-GPS: MS-Based, MS-Assisted

* Stand-alone GPS

Support embedded Script Language

* LUA Script Language
