Simcom Sim7200sa Support Lte Fdd Bb1 B3 B4 B5 B7 B8 B28 - China

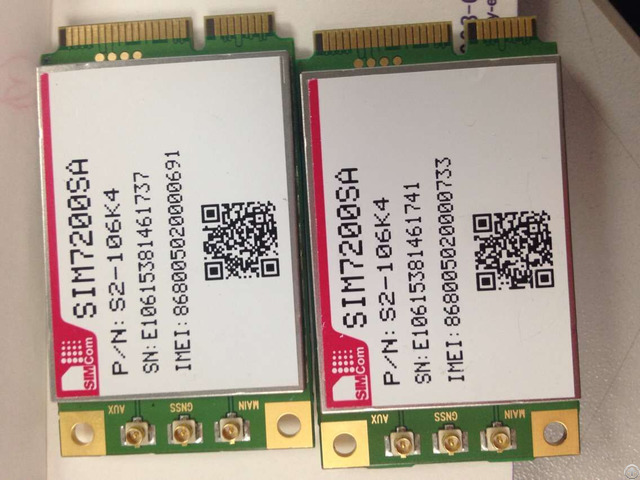

SIMCom presents an ultra compact and reliable wireless module SIM7200SA which is based on Qualcomm MDM9225 multiple-mode LTE platform.

SIM7200SA is a complete multi-band LTE-FDD/LTE-TDD/DC-HSPA+/ HSPA/UMTS/EGDE/GPRS/GSM/G NSS MINI PCIE module designed with very powerful processors integrating application core: ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 core, allowing customers to benefit from small dimensions and cost-effective product solutions with low power consumption in high-speed Download and upload.

General Features

Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28

Tri-Band LTE-TDD B38/B40/B41

Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8

Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8

GPRS multi-slot class 33

EDGE multi-slot class 33

Control Via AT Commands or Gobi API

Supply voltage range: 3.3V

Operation temperature: -40℃ to +80℃

Dimension: 51*30*4.75mm

Weight: TBD

LTE FDD/TDD Rel-9 Cat4/Rel-10 Cat4

UTMS, HSPA+ DC-HSPA+, Rel-10

GSM GSM R99, GPRS, EDGE

GNSS gpsOne Gen 8B;standalone;assisted, XTRA

Specifications for Data transfer

• LTE-FDD/LTE-TDD

- Uplink up to 50Mbps, - Downlink up to 150Mbps

• HSPA+

- Uplink up to 11 Mbps, - Downlink up to 42 Mbps

• UMTS

- Uplink/Downlink up to 384Kbps

Other features

• USB Driver for Microsoft Windows

2000/XP/Vista

• USB Driver for Win7/Win8

• USB Driver for Windows CE

• USB Driver for Linux/Android

• RIL supporting for Android/Windows CE

• Linux API SDK

• Firmware update via USB

• TCP/IP/IPV4/V6 Multi-PDP, MT PDP

• FTP/FTPS/HTTP/HTTPS/SMTP/ POP3/DNS

• eCall

• Gobi SDK for Win7/Win8/Linux

• MBIM for Win8

Interfaces

• PCI Express Mini Card

• USB 2.0

Certifications

• ROHS(TBD)

Orignal Packing

Production Lead-time: 2-4 weeks

Delivery Terms : FOB HK
