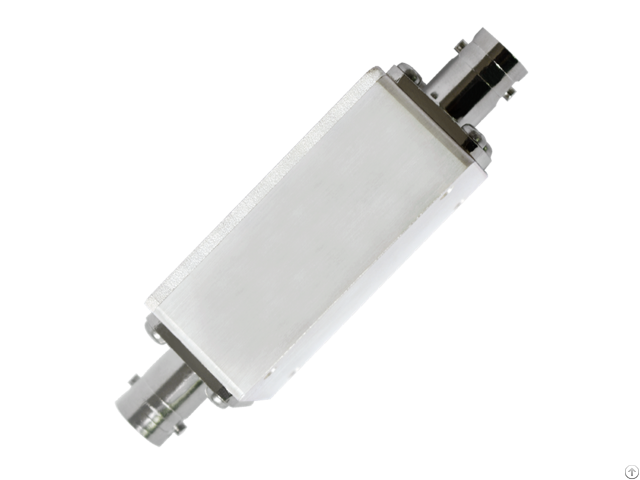

Telecommunications Rf Module Passive Device Uhf470 560mhz Band Pass Filter - China
price: 136.00 Dollar US$
Type:
UHF Band Pass Filter
Model Number:
UIYLPF4825A470T560BF
Place of Origin:
Guangdong, China
Brand Name:
UIY
Pass Band:
470-560MHz
Insertion Loss:
<3.5dB
Ripple in-band:
<1.5dB
VSWR:
<1.5
Rejection:
20dB @435-445MHz & 585-595MHz 40dB @DC-435MHz & 595-1000MHz
Power:
2W
Connector:
BNC-Female
Temperature Range:
-30~+70℃
Dimension:
48*25*20mm
Warranty:
1 Year
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: August 26, 2021
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
