Wireless 4g Lte Outdoor Weatherproof Router Support Waterproof And Dustproof Lightning Protection - China

Production brief introdution:

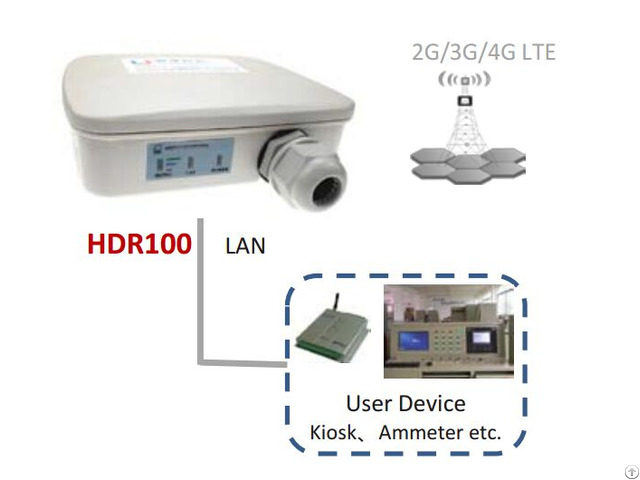

It adopts the high performance professional router chipset and 3G/4G LTE wireless module.

It is based on embedded real-time operating system as software support platform, meanwhile provides a LAN port.

It can connect through POE adapter.

It can achieve high gain 3G/4G LTE antenna.

It can be mounted on the roof.

It designed waterproof, dustproof, lighting protection feature.

It provides stable and reliable data connection for user device.

it can cover every lot industry field in each aspect, such as RTU, finance, transport, security, environmental protection, agriculture, forestry, water, coal mine and petrochemical and so on.

Feature.

1 - Support 3G or 4G LTE network.

2 - MIMO RF dual antenna

3 - Waterproof and dustproof IP65 - Can be mounted on roof.

4 - Lightning protection

5 - With SIM card slot.

6 - Automaticlly dial-up access to the Internet after boot .

7 - One ethernet interface.

It can be extended 100m long of the ethernet cable.

8 - Built-in dial-up parameters more than 200 operators.

9 - We can customize 3G/4G LTE frequency bands for customers.

10 - Dimensions: 130*55*26mm


11: Protocals : L2TP PPTP SIP ALG H.

323 ALG PPTP ALG FTP ALG DDNS DMZ

12 - TR069, firewall

Product specification.

* 3G router.

Operating temperature: -20°C -- +60°C

Operating humidity: 5%--95%

Operating frequency:

1).

HDR1003GWU

WCDMA: (850)900/1900/21 00MHz



2).

HDR1003GWO+:

WCDMA: 850/1900MHz & 900/2100MHz

GSM: 850/900/1800/1900MHz

3).

HDR1003GEO:

EVDO 800MHz & 800/1900MHz

he rate and network mode:

1).

HDR1003GWUO:

CDMA: DL 7.2MbpS, UL 5.76MbpS

2).

HDR1003GWO+:

WCDMA: DL 14.4MbpS, UL 5.76MbpS

3).

HDR1003GEO:

EVDO: DL 3.1Mbps, UL 1.8Mbps

*Note: We can provide customized frequency bands or network mode.

* 4G LTE Router.



1).

HDR1004GTO.

TDD-LTE.

Band 38, Band 39, Band 40 2570~2620MHz/1880~1920MHz / 2300~2500MHz

FDD-LTE.

Band 7 UL.

2500MHz-2570MHz, DL.

2620MHz-2690MHz

TD-SCDMA.

1880~1920MHz/ 2010~2025MHz

GSM.

900MHz/1800MHz

2).

HDR1004GFO

Latin-America version.

FDD- LTE.

2100/1900/1700/850/900/26 00/700MHz Band 1, 2, 4, 5, 7, 8, 12&17

TDD- LTE.

Band 38

WCDMA/UMTS .

2100/1900/1700/850(900)M Hz

GSM/GPRS.

850/900/1800/1900MHz.

EU_Asia version.

FDD- LTE.

Band 1, 3, 7, 8, 20

TDD- LTE.

Band 38, 40

WCDMA/UMTS .

2100/1900/1700/850(900)MH z

GSM/GPRS.

850/900/1800/1900MHz

*Note: We can provide customized frequency bands.

Data rate:

*4G router.

1).

HDR1004GTO.

TDD LTE: DL, 100MbpS, UL, 50Mbps

FDD LTE: DL, 100MbpS, UL, 50Mbps

TD-SCDMA: DL 2.8MbpS;UL 2.2MbpS

2).

HDR1004GFO

FDDLTE: DL100MbpS, U, 50Mbps

TDDLTE: DL, 61MbpS, UL, 18Mbps

*3G router.

.

HDR1003GWO+:

WCDMA: DL14.4MbpS, UL5.76MbpS

*Note: We can provide customized the frequency bands and the data rates.

Test environment.

ESD, Waterproof and dustproof, Lightning protection, Temperature(-30~+70).
