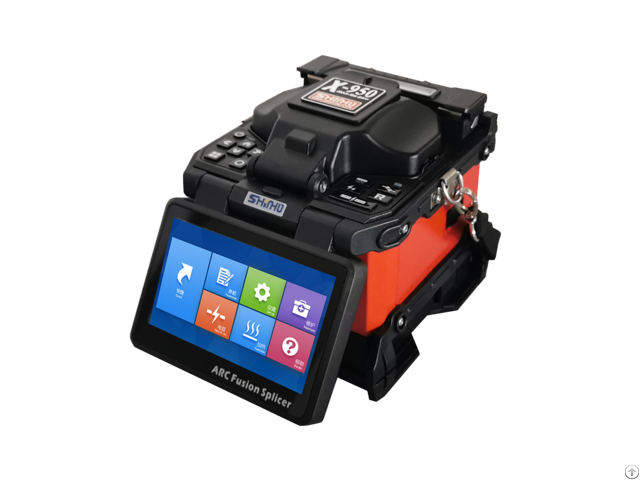

X 950 Ribbon Fiber Fusion Splicer Kit With Thermal Stripper For Fttx - China

Product Descriptions

X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.

Features Applicable to 2-12 ribbon fiber splicing

Accurate alignment, world standard fusion loss

20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s

Applicable to different types fibers (SM/MM/DS/NZDS)

Ruggedized body, waterproof, anti-dust, anti-shock

Pluggable Li-battery, support separate charging

Easy to maintenance, easy to replace the electrodes

USB port for software upgrading, records exporting

Support 4000/100 groups fusion records/fusion images

Comply with CE/Rohs international standard X-950 Fusion Splcier Data Sheet Applicable fiber SM(ITU-T G.

652), MM(ITU-T G.

651), DS(ITU-T G.

653), NZDS(ITU-T G.

655) Fiber quantity Single core, 2-12 cores

Fiber alignment method Clad to Clad Typical splice loss SM: 0.05dB MM: 0.02dB DS: 0.08dB NZDS: 0.08dB

Return loss > 60dB

Diameter of coating 250~400µm

Splicing program 40 groups

Operate mode Automatic/Manual

Auto-heating Available

Typical splicing time 20 seconds

Typical heating time 1-2 cores 26 seconds, 4-12 cores 40 seconds

Fiber magnification 25X

Display screen 5.0 inch color LCD monitor

Records storage 4000 groups data records and 100 group images

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easy for operation

Battery 5200mAh Li-battery, typical 150 cycles splicing and heating, suppport separating charging

Power supply Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V

Electrodes life More than 3000 ARC discharges, can be replaced vonveniently

Ternimal USB2.0 port, for software upgrading and records exporting

Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC, Wind speed: Max 15m/s

Dimension 155mm(L)×144mm (W)×155mm (H) /

Weight 2.30kg (including battery)
