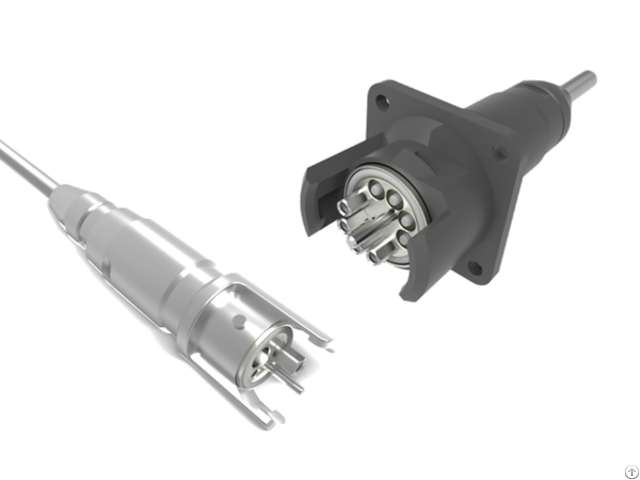

Yz Series Round Neutral Fiber Optic Connector - China

Features Complies with GJB1919A standards, Features a neutral bayonet lock mechanism for quick connection and disconnection, Has a wall-passing sealing connection structure with up to 12 cores, Boasts a neutral design without distinction between male and female ends, allowing for flexible interconnection between plugs and sockets, Offers a choice of stainless steel, aluminum alloy, or polymer composite materials for the outer shell, Achieves precise fiber alignment through the use of ceramic ferrules and ceramic sleeves, Suitable for military communications, military computer systems, nuclear power applications, vehicle-mounted communications, and other emergency communication scenarios.

Mechanical Performance • Mechanical Life: 500 cycles of insertion and extraction

• Tensile Strength: ≥500N (main cable)

• Vibration: 10Hz to 500Hz, with an acceleration of 980m/s²

• Shock: 980m/s² Environmental Performance • Temperature Shock: -40℃ to +80℃

• Ingress Protection Rating: IP67 Optical Performance • Insertion Loss: ≤0.8dB (for 2-4 cores)

≤1.0dB (for 6-12 cores)

Company Contact:

• Posted By: Gigac

• Phone: +86.18512845338

• Address: Zone 3-502,Haolang Science Park, Chengdu , Sichuan , China

• Email:

• Website: https://www.gigac.com/

• Business Description: Gigac Technology Co., Ltd.It was established in May 2012, which is focus on the Fiber Optical Transceivers Modules and devoted to be the leader of optical transceivers manufacturer in China.

  The Headoffice is in Chengdu city,China.

  It is composed by Operation Center, Sales Center, Research and Design Center, Labratory, Production Line and branch offices in Beijing, Nanjing, Wuhan and Shenzhen.

  GIGAC has implemented ISO9001: 2008 Quality Management System and ISO14001: 2004 Environmental Management System.

  Whole Supplying Chain and Production Line are complying with RoHS6 standard, FCC, CE and other compulsory certification system associated with fiber optic industry.

  With more than 10 years of producing and researching experience, Gigac has developed many variants of optical modules: Full Scale Production from 100M to 1.25G and 10G Bit Rate, release EPON,GPON and 40G in 2013, release 40G QSFP+SR modules in 2014, release SNAP 12 Parellel, UOST/Stratos series, T/R Component in 2015, Release QSFP28 SR, LR4 ,CWDM 4 in 2017 - Now SFP+ 120KM transceivers, GPON, EPON, XGSPON,Combo series are released.

  Gigac Technology is providing the following reliable solutions:

  1 - Fiber Communication among the electronic devices in aircraft, ships and military vehicles;

  2 - Automatic Control in Power plant and Industy control;

  3 - Optic Transceivers used in FTTP, FTTB, FTTC in the world.

  Our Vision: To become a reformer of the optical active industry with characteristics.

  Our Values: Innovation, Efficiency, Integration and Struggle

  Providing High-Quality, Efficient and Reliable products to Valued Customers.
