1600g Osfp Xd 2 Fr4 - China

price: 10000.00 Dollar US$

1600g Osfp Xd 2 Fr4

Products Photos Catalog 1600g Osfp Fr4 Photos Catalog

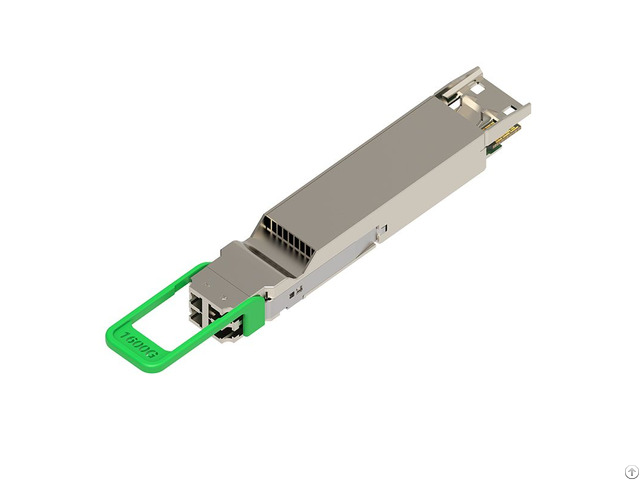

1.6T OSFP-XD 2*FR4 is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber.

It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser.

It is compliant with 1600G Ethernet specs and OSFP-XD MSA.

1.6T OSFP-XD 2*FR4 Key Features

Hot-pluggable OSFP-XD form factor

Supports 1600Gb/s aggregate bit rate

Power dissipation <25W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 500m on Single Mode Fiber (SMF)

Aligned with IEEE 802.3df

8x200G PAM4 Cooled EML 1311nm transmitter

16x100G PAM4 retimed 400GAUI-4 electrical interface

Dual MPO-12 receptacles

I2C management interface

RoHS compliant 1.6T OSFP-XD 2*FR4 Application

DATACOM Specifications

Data Rate: 1600Gb/s

Distance: 500m

Case Temperature: 0~70℃

Voltage Supply: 3.3V

Transmitter: EML

Receiver: PD

Wavelength: 1311nm

Connector: Dual MPO-12

Power consumption(Max): 25W
