2 2b Optical Switch - China

GLSUN 2×2B Optical Switch - Features

•Low Insertion Loss

•Wide Wavelength Range

•Low Crosstalk

•High Stability, High Reliability

•Epoxy-free on Optical Path

•Latching and Non-latching

GLSUN 2×2B Optical Switch - Applications

•R&D in Laboratory

•System Monitoring

•OADM

•MAN (Metropolitan Area Network)

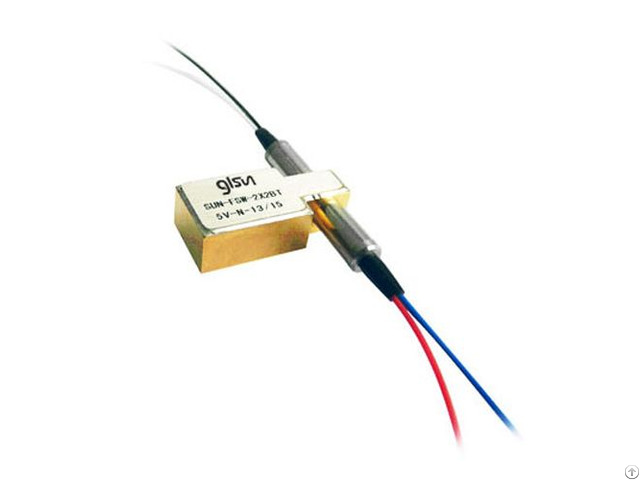

GLSUN SUN-FSW-2x2B Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0x(W)12.6x(H)8.2mm.

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

2×2B Optical Switch - Specifications

Model No: SUN-FSW-2×2B

Wavelength Range: 850±40 / 1300±40;

1260 ~ 1650

Test Wavelength: 850 / 1300; 1310 / 1550

Insertion Loss 1, 2: Typ: 0.8 Max: 1.2; Typ: 0.6 Max: 0.8

Return Loss 1, 2: MM ≥ 30 SM ≥ 50

Crosstalk 1: MM ≥ 35 SM ≥ 55

PDL≤0.05dB

WDL≤0.25dB

Repeatability≤±0.02 dB

Operating Voltage: 3V or 5V

Durability ≥ 10 Million

Switching Time≤8ms

Optical Power≤500mW

Operating Temperature: -20 ~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Weight: 14g

Dimension: (L)27.0×(W) 12.6×(H)8.2 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
