2x2 Optical Switch - China

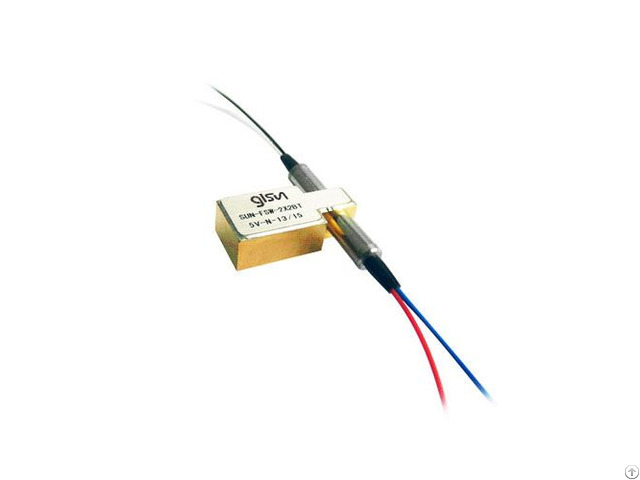

SUN-FSW-2x2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)28.5x(W)12.6x(H)8.7mm (SM); (L)27.0x(W)12.6x(H)8.2mm (MM).

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

GLSUN 2x2 Optical Switch - Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching

GLSUN 2x2 Optical Switch - Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network)

Model No: SUN-FSW-2x2-S

Wavelength Range 1260 ~ 1650

Test Wavelength 1310 / 1550

Insertion Loss 1, 2 Typ: 0.8 Max: 1.0

Return Loss 1, 2 = 50

Crosstalk 1= 55

PDL=0.05

WDL=0.25

Repeatability =±0.02

Operating Voltage 3.0 or 5.0V

Durability= 10 Million

Switching Time =8ms

Optical Power=500mW

Operating Temperature -5 ~ +70?

Storage Temperature -40 ~ +85?

Relative Humidity 5 ~ 95%

Weight 16g

Dimension (L)28.5x(W)12.6x(H)8.7 ±0.2mm

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
