2x2f Fiber Switch - China
price: 100.00 Dollar US$

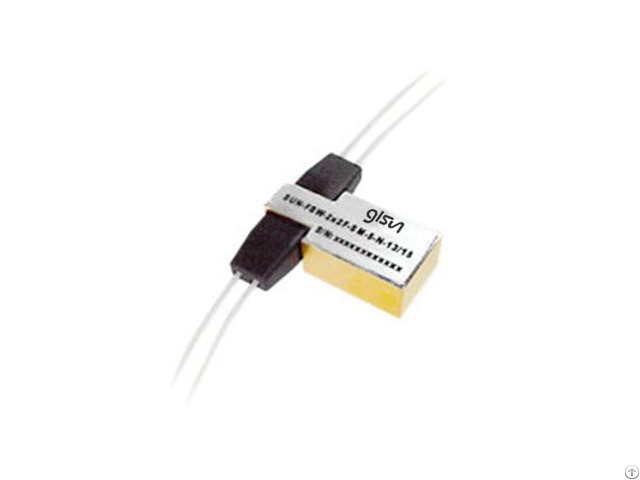

2x2F Optical Switch Fiber Switch - SM Specification
Model No: SUN-FSW-2×2F-S
Wavelength Range: 1260 ~ 1650nm
Test Wavelength: 1310 / 1550nm
Insertion Loss 1, 2: Typ: 0.8 Max: 1.0
Return Loss 1, 2 ≥ 50dB
Crosstalk 1 ≥ 55dB
PDL ≤0.05 dB
WDL≤0.25dB
Repeatability ≤±0.02 dB
Operating Voltage: 3Vor 5V
Durability ≥ 10 Million Cycles
Switching Time ≤8ms
Optical Power ≤500mW
Operating Temperature: -20 ~ +70℃
Storage Temperature: -40 ~ +85 ℃
Relative Humidity: 5 ~ 95%
Weight: 14g
Dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLsun Science And Tech Co., Ltd.
- Phone: 86-773-3116006
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China
- Email:
- Website: https://www.glsun.com/
Published date: August 24, 2016
- Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.
GLSUN holds many technical patents on optics.
Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
Since its establishment, GLsun has striven to be an innovative and advanced technical company.
The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.
GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.
The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
