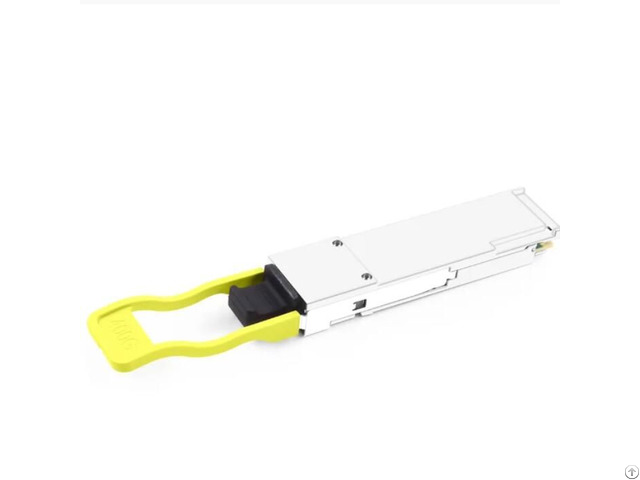

400gbps Qsfp112 Dr4 Transceiver - China

400 Gbps Quad Small Form Factor Pluggable(QSFP112) optical transceiver designed for 500 m optical communication applications.

Features

•Compliant to QSFP112 MSA Rev 2.0

•Parallel 4 Optical Lanes

•IEEE 802.3bs 400GBASE-DR4 Specification compliant

•Maximum power consumption 10W Applications

•400G Ethernet

•Data Center Interconnect •Enterprise networking

•Infiniband Interconnect General Description

•Compliant with IEEE Std 802.3ck, IEEE Std 802.3bs

•Compliant with 400Gbase-DR4 optical specifications

•Compliant with QSFP112 MSA Ver 2.0 type2

•Form factor of QSFP112 type2(87.4mm)

•Compliant with CMIS5.0 Management interface specifications

•MPO12 receptacle with APC end face

•4x106 - 25Gb/selectrical interface (400GAUI-4)

•Up to 0.5km transmission on single mode fiber (SMF) with FEC

•Single +3.3V power supply

•Maximum power consumption 10W

•RoHS 2.0 complaint Functional description

This product is a 400Gb/s QSFP112 optical module designed for 0.5Km optical communication applications.

The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.

On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data.

An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP112 DR4 module receptacle.

Host FEC is required to support up to 0.5Km fiber transmission.
