Dual Stage 1x2 Magneto Optical Switch - China

price: 200.00 Dollar US$

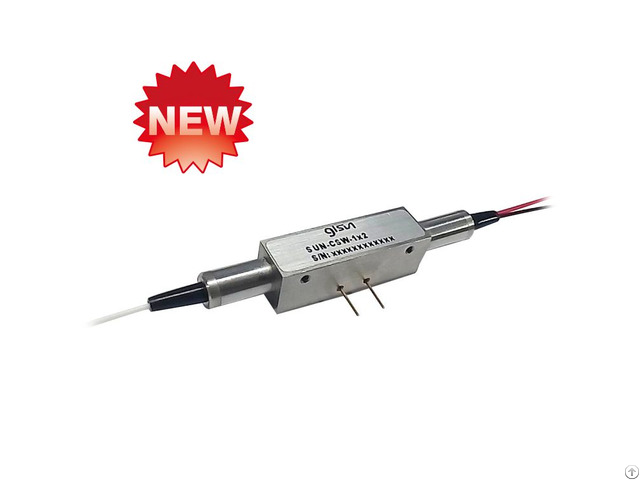

Dual Stage 1x2 Magneto Optical Switch

Products Photos Catalog Dual Stage 1x2 Magneto Photos Catalog

GLSUN Dual Stage 1x2 Magneto Optical Switch - Features

High switching speed

Better durability

High reliability

Low voltage drive

Fail-safe latching

GLSUN Dual Stage 1x2 Magneto Optical Switch - Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system

GLSUN Dual Stage 1x2 Magneto Optical Switch - Specifications

1x2 or 2x1

Wavelength Range: 1520~1580nm

Test Wavelength: 1550nm

Insertion Loss 1, 2: 1.0dB

Return Loss≥50dB

Crosstalk≥40dB

PDL≤0.2dB

Repeatability≤±0.01 dB

Operating Voltage: 5V

Durability≥ 30 Bllions Cycles

Switching Time≤100μs

Switching Type: Latching n/a

Optical Power≤500mW

Operating Temperature: -5~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Fiber Type: G657A1

Dimension: (L )29.0x(W)7.3x(H)6mm

Note:

1 Within operating temperature and SOP.

2 Excluding connectors.


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: August 24, 2016

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
