Duct Outdoor Optical 12 Fibers Ftth Solution Optic Fiber Cable Single 9 125 Os2 G652d - China

DUCT Outdoor optical cable 12 fibers FTTH solution optic fiber cable 12 Fibers Single 9/125 OS2(G652D), Single-Armored Double-Jacket Quantity: 100km

unit price: FOB Shanghai/Shenzhen 486USD/km;

Lead time: 15 days; Product Description

Outdoor duct optical fiber cable is a kind of transmissions cable which is especially designed to be laid in pipes, providing better laying environment and has no special requirement for the out sheath of cables.

The mechanical or manual hauling can be adopted during installation.

Outdoor duct optical fiber cable is applied to WAN/LAN telecommunication.

(GYTS)stranded loose tube armored fiber optic cable

Description

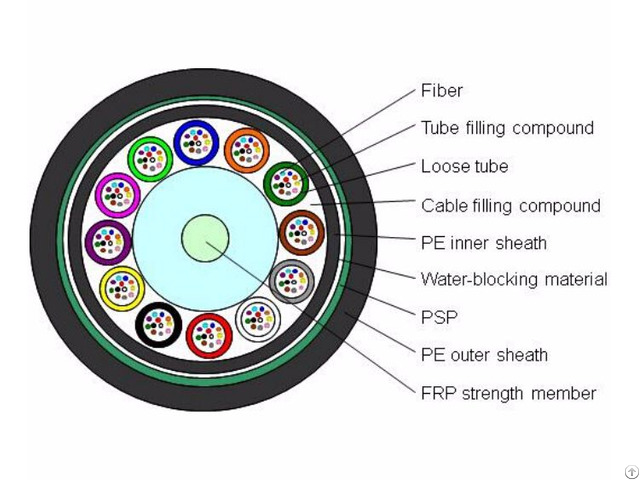

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress.

The cable is completed with a PE sheath.

Characteristics

Good mechanical and temperature performance

High strength looes tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Specially designed compact structure is good at preventing loose tubes from shrinking

Crush resistance and flexibility

PE sheath protects cable from ultraviolet radiation

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof Standards

GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Optical Characteristics

G.

652 G.

655 50/125μm 62.5/125μm

Attenuation

(+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km @1300nm ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km @1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km @1300nm ≥1000 MHz·km ≥600 MHz·km

Numerical Aperture 0.200±0.015NA 0.275±0.015NA

Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm Technical Parameters Cable Type Fiber Count Tubes Fillers Cable Diameter

mm Cable Weight kg/km Tensile Strength

Long/Short Term N Crush Resistance

Long/Short Term

N/100mm Bending Radius

Static

/Dynamic

mm

GYTS-2~6 2~6 1 4 10.2 116 600/1500 300/1000 10D/20D

GYTS-8~12 8~12 2 3 10.2 116 600/1500 300/1000 10D/20D

GYTS-14~18 14~18 3 2 10.2 116 600/1500 300/1000 10D/20D

GYTS-20~24 20~24 4 1 10.2 116 600/1500 300/1000 10D/20D

GYTS-26~30 26~30 5 0 10.2 116 600/1500 300/1000 10D/20D

GYTS-32~36 32~36 6 0 10.6 129 1000/3000 300/1000 10D/20D

GYTS-38~48 38~48 4 1 11.2 141 1000/3000 300/1000 10D/20D

GYTS-50~60 50~60 5 0 11.2 141 1000/3000 300/1000 10D/20D

GYTS-62~72 62~72 6 0 12.0 159 1000/3000 300/1000 10D/20D

GYTS-74~84 74~84 7 1 13.6 209 1000/3000 300/1000 10D/20D

GYTS-86~96 86~96 8 0 13.6 209 1000/3000 300/1000 10D/20D

GYTS-98~108 98~108 9 1 15.4 232 1000/3000 300/1000 10D/20D

GYTS-110~120 110~120 10 0 15.4 232 1000/3000 300/1000 10D/20D

GYTS-122~132 122~132 11 1 17.2 280 1000/3000 300/1000 10D/20D

GYTS-134~144 134~144 12 0 17.2 280 1000/3000 300/1000 10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
