Fiber Optical Power Meter With Vfl Otdr - China

price: 80.00 Dollar US$

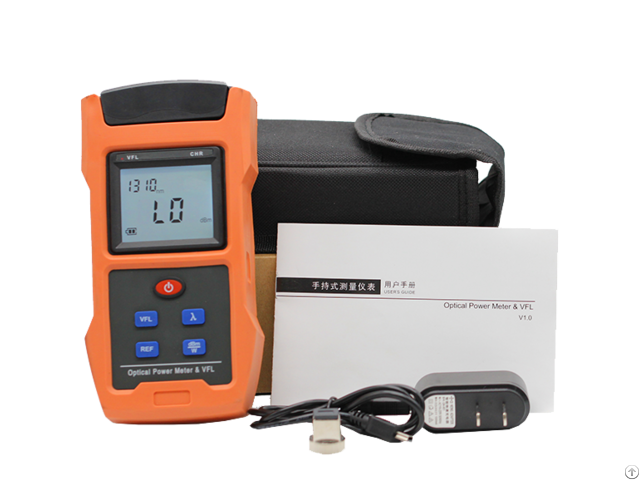

Fiber Optical Power Meter With Vfl Otdr

Products Photos Catalog Fiber Optical Power Photos Catalog

Features Self CalibrationØ Set the Auto Off

Wavelength Memory function after turn off the tester

High Accuracy, high, High sensitivity, high linearity-

Stable VFL Output

USB Charge port

FC, SC Connector

18650Li-ion Battery

Lower power consumption design, long standby time

Rubber Outshell, increased the protective properties for field work

Application Maintenance Telecom

Maintenance CATV

Test Lab of Fiber Optic

Optical fiber sensors

Specifications Optical Power Meter Detector Type InGaAs

Optical Connector ST/SC/FC & 2.5mm Universal

Calibrated Wavelengths 850, 1300, 1310, 1490, 1550, 1625 nm

Measurement Range +6 ~ -70 dBm

Accuracy ±0.2 dB

Power Measurement Linearity ±0.1 dB

Display Resolution ±0.01 dB

Power Display Units dBm, mW, uW Visual Fault Locator Output power 1mw/10MW/20mw/30mw Range 12-km@SM Connector ST/SC/FC & 2.5mm Universal Laser safety rating Class 2 Wavelength 650nm±20nm Output modes Continuous (CW), 2 Hz pulsed Reverse battery protection Yes Others Power Supply 18650mAh Li-con battery Auto Off 10 minutes Working time >200hourss(only OPM Work)

≥50hours(10mWVFL & OPM Work meanwhile) Working Temperature -10~+45 Weight 250g Dimensions 160x75x10mm


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 26, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
