Ftth Sc Apc Optical Fast Connector For Drop Cable - China

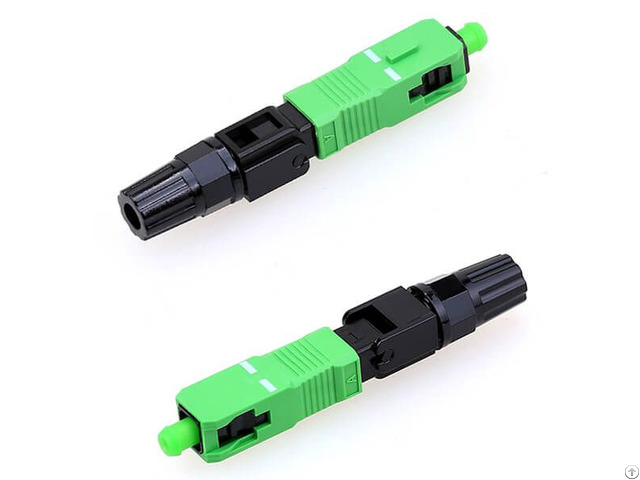

SC/APC SM Optical Fast Connector is a perfect solution for filed working and FTTH connection.

It is widely used for where need to quick connection, providing a quick assembly and stable performance.

The field assembly optical connector are available for UPC or APC polishing end face as option.

Description

1 - Model No: FLK-FAOC-SA01

2 - Applicable for Field optical cable : 0.9mm, 2.0mm, 3.0mm indoor cable or Drop cable 3.0×2.0mm

3 - Optical fiber diameter 125μm: SM G652D, 657A & 657B

4 - Fiber mode: Single mode

5 - Polishing Type: UPC or APC

6 - Operation time: About 120s(no fiber cut)

7 - Insert loss: ≤ 0.3dB(1310nm & 1550nm)

8 - Return loss: UPC≥50dB, APC≥60dB

9 - Fastening strength of naked fiber: >5 N

10 - Fastening strength of naked fiber holder: >10 N

11 - Tensile strength: >50 N

12 - Using temperature: -40～+75℃

Feature

Excellent mechanical capability

Stable capability and high reliability

Low insertion loss and high return loss

Field installable, cost effective, user friendly;

PC, APC polishing optional;

No epoxy and polishing required, No special tools needed when installed.

;

FTTH cable, fiber optic cable optional;

Reliable durable and superior optical performance
