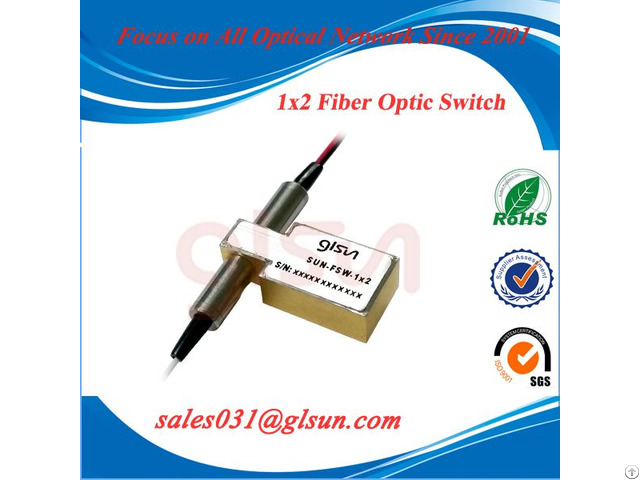

Glsun 1x2 Mechanical Optical Switch - China

GLSUN 1×2 Mechanical Optical Switch Fiber Switch Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching GLSUN 1×2 Mechanical Optical Switch Fiber Switch​ Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network)

·Network Security and Monitoring GLSUN 1×2 Mechanical Optical Switch Fiber Switch​ Specifications

Parameters Unit SUN-FSW-1×2

Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650

Test Wavelength nm 850 / 1300 1310 / 1550

Insertion Loss 1, 2 dB Typ: 0.8 Max: 1.2 Typ: 0.6 Max: 0.8

Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50

Crosstalk 1 dB MM ≥ 35 SM ≥ 55

PDL dB ≤0.05

WDL dB ≤0.25

Repeatability dB ≤±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥ 10 Million

Switching Time ms ≤8

Optical Power mW ≤500

Operating

Temperature

℃ -20 ~ +70

Storage

Temperature

℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Weight g 14

Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding connectors.
