Glsun 1x2h Fiber Optic Switch For Ftth - China

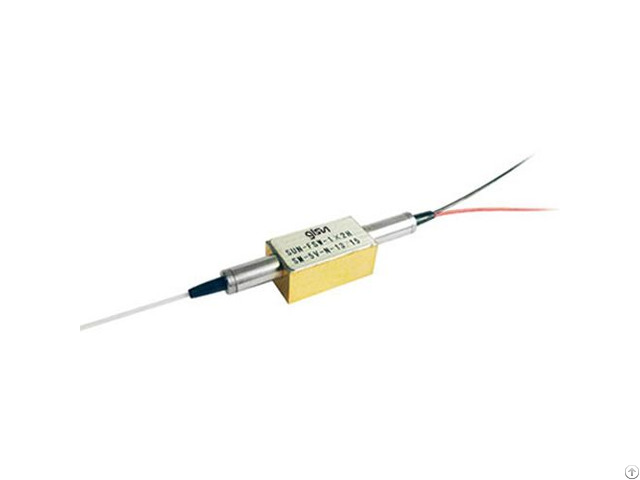

SUN-FSW-1x2H Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)22.5x(W)11.8x(H)10.2mm .

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

Model : SUN-FSW-1x2H

Wavelength Range 850±40 / 1300±40 1260 ~ 1650

Test Wavelength 850 / 1300 1310 / 1550

Insertion Loss1, 2 Typ: 0.8 Max: 1.2 Typ: 0.8 Max: 1.0

Return Loss1, 2 MM ≥ 30 SM ≥ 50

Crosstalk 1 MM ≥ 35 SM ≥ 55

PDL ≤0.05dB

WDL ≤0.25dB

Repeatability ≤±0.02dB

Operating Voltage: 3V or 5V

Durability≥ 10 Million

Switching Time ≤8ms

Optical Power ≤500mW

Operating Temperature -20 ~ +70℃

Storage Temperature -40 ~ +85℃

Relative Humidity 5 ~ 95%

Weight 14g

Dimension (L )22.5x(W)11.8x(H)10.2 ±0.2mm

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
