Glsun 2 2a Fiber Optical Switch - China

price: 100.00 Dollar US$

Glsun 2 2a Fiber Optical Switch

Products Photos Catalog Glsun Fiber Optical Photos Catalog

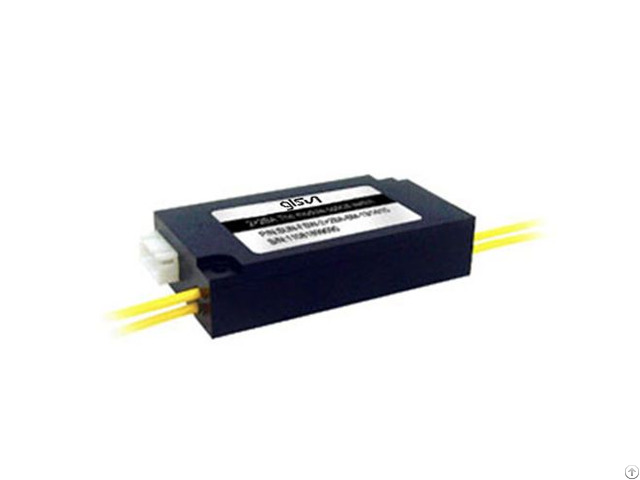

SUN-FSW-2x2A Fiber Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0x(W)26.0x(H)10.0mm .

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

2×2A Fiber Optical Switch - Specifications

Model No: SUN-FSW-2×2A

Wavelength Range: 1260 ~ 1650nm

Test Wavelength: 1310 / 1550nm

Insertion Loss 1, 2: Typ: 0.8 Max: 1.0

Return Loss ≥ 50 1, 2dB

Crosstalk 1 ≥ 60dB

PDL≤0.05dB

WDL≤0.25dB

Repeatability≤±0.02 dB

Operating Voltage: 3V or 5V

Durability ≥ 10 Million Cycles

Switching Time ≤8ms

Optical Power ≤500mW

Operating Temperature: -20 ~ +70℃

Storage Temperature : -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Weight : 25g

Dimension : (L)55.0x(W)26.0x(H)10.0 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: August 24, 2016

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
