Glsun 2x2b Optical Bypass Switch - China

Product Description

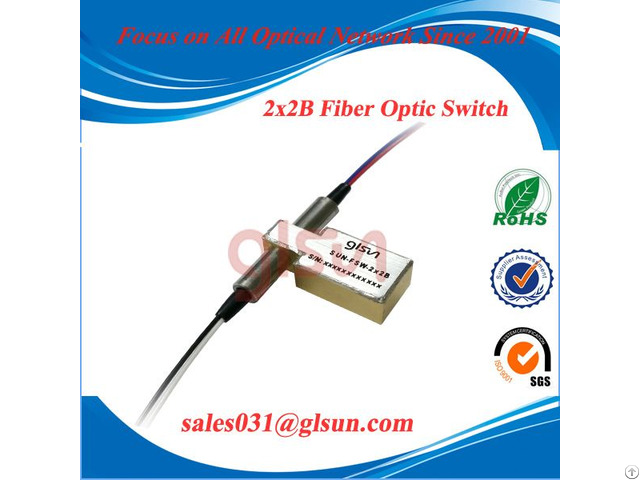

2x2B Optical Bypass Switch - Introduction

SUN-FSW-2x2B Fiber Optical Bypass Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0x(W)12.6x(H)8.2mm.

It is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

2x2B Optical Bypass Switch - Features Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching Application

R&D in Laboratory

System Monitoring

OADM

Sensing Area

MAN (Metropolitan Area Network) Specification

2x2B Optical Bypass Switch - Specifications

Parameters

Unit

SUN-FSW-2×2B

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

Typ: 0.8 Max: 1.2

Typ: 0.6 Max: 0.8

Return Loss 1, 2

dB

MM ≥ 30 SM ≥ 50

Crosstalk 1

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3 or 5

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

14

Dimension

mm

(L)27.0×(W)12.6×(H)8 .

2 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
