Glsun 4x4 Multi Channel Fiber Optical Switch - China

price: 500.00 Dollar US$

Glsun 4x4 Multi Channel Fiber Optical Switch

Products Photos Catalog Glsun 4x4 Multi Photos Catalog

Product Description

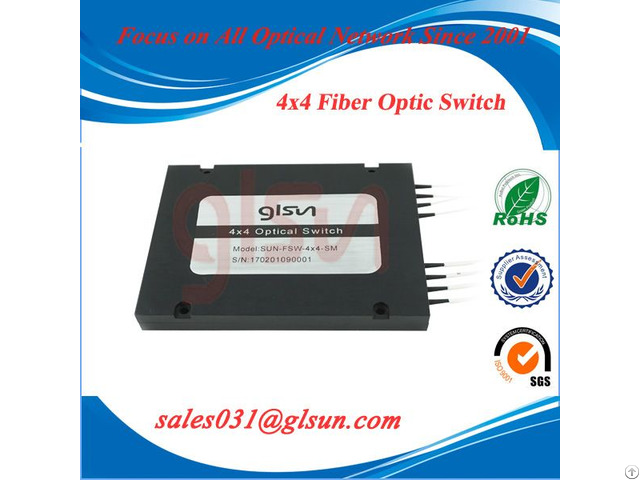

GLSUN 4×4 Multi-Channel Fiber Optical Switch - Introduction

SUN-FSW-4×4 Optical Switch is an ideal component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

Features

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

Applications

·R&D in Laboratory

·System Monitoring

·OADM

·OXC Specification

GLSUN 4×4 Multi-Channel Fiber Optical Switch - Specifications Wavelength Range nm

850±40 / 1300±40 1260 ~ 1650

Test Wavelength 850 / 1300

1310 / 1550 nm

Insertion Loss

Typ: 2.3dB Max: 2.6dB

Return Loss

MM ≥ 30dB SM ≥ 50dB

Crosstalk

MM ≥ 35dB SM ≥ 55dB

PDL≤0.15dB

WDL≤0.35dB

Repeatability≤±0.05 dB

Power Supply 5.0V ± 5%

Durability≥ 10 Million

Switching Time≤8ms

Optical Power≤500mW

Operating Temperature -5 ~ +70℃

Storage Temperature-40 ~ +85℃

Relative Humidity5 ~ 95%

Dimension

(L)110×(W)95×(H)14 ±0.2 mm


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: October 31, 2017 - Modified date: October 31, 2017

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
