Glsun 8 + 1 Optical Switching Fiber Switch - China
price: check with company for price

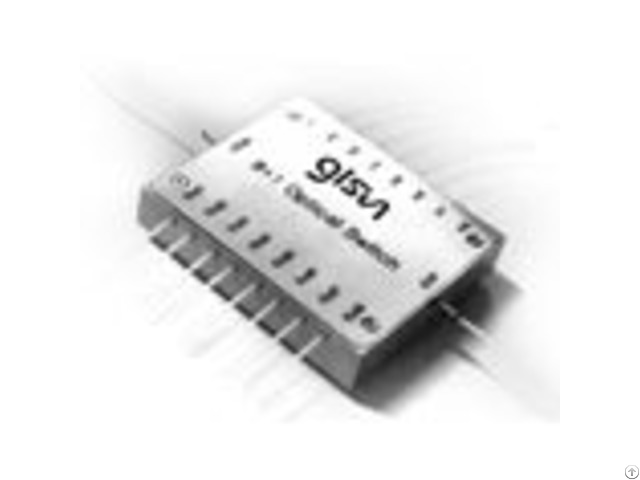

GLSUN 8+1 Optical Switch Fiber Switch - Specification
Model No: SUN-FSW-8+1
Test Wavelength: 1550
Insertion Loss 1, 2: Typ: 0.8 Max: 1.0
Return Loss 1, 2≥ 50
Crosstalk 1≥ 55
PDL≤0.15
Repeatability≤±0.05
Operating Voltage: 5.0V±0.5
Switch Type: Latching
Voltage Pulse Width(Latching): Typ: 20ms
Durability≥ 10 Million
Switching Time≤8
Optical Power≤500mW
Operating Temperature: -10 ~ +70℃
Storage Temperature: -40 ~ +85℃
Relative Humidity: 5 ~ 95%
Dimension(L)56.2×(W)4 8.5×(H)10.0 ±0.2 mm
Note:
1 Within operating temperature and SOP.
3 Excluding Connectors.
GLSUN 8+1 Optical Switch Fiber Switch - Ordering Information:
Fiber Type: SM: SM, 9/125
Operating Voltage: 5: 5V
Switch Type: L: Latching
Test Wavelength: 1550: 1550nm
Tube Type: 90: 900um
Fiber Length(Include connector): 10: 1.0m±5cm X: Others
Connector: OO: None
Company Contact:
- Posted By: GLsun Science And Tech Co., Ltd.
- Phone: 86-773-3116006
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China
- Email:
- Website: https://www.glsun.com/
Published date: August 17, 2016 - Modified date: August 24, 2016
- Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.
GLSUN holds many technical patents on optics.
Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
Since its establishment, GLsun has striven to be an innovative and advanced technical company.
The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.
GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.
The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
