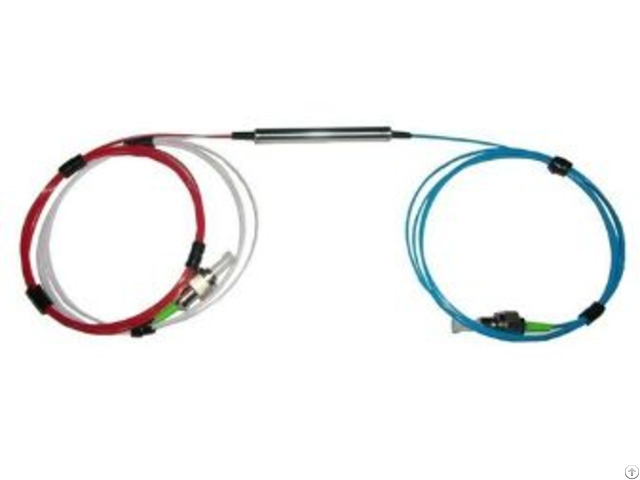

Polarization Insensitive Optical

Circulator

Features:

Low Insertion Loss

Wide Band High Isolation

Low PDL

Compact In-Line Package

High Stability and Reliability

Application:

Optical Amplifier

Metro Area Network

Wavelength Add/Drop

Dispersion Compensation

Bi-Direction Communication

Optical Specifications:

Parameter Specification

Configuration Port 1 to Port 2 to Port 3 Port 1 to Port 2 to Port 3 to Port 4

Operation Wavelength (nm) 1310±30 or 1550±30 or 1585±30 1525 to 1610 1310±30 or 1550±30

I.

L (dB) Typical 0.6 1.0 0.8

Maximum 0.8 1.2 1.0

Typical Isolation (dB) 50 50 50

Minimum Isolation (dB) 40 35 40

Cross Talk (dB) ≥50 ≥50 ≥50

Polarization Dependent Loss (dB) <0.15 <0.2 <0.2

Polarization Mode Dispersion <0.1 <0.1 <0.1

Return Loss(dB) ≥50 ≥50 ≥50

Power Handling (mW) 300 300 300

Operating Temperature (℃) -0~+70 -0~+70 -0~+70

Storage Temperature (℃) -40~+85 -40~+85 -40~+85



Note: All the data above does not include connectors.
