Mini 3 Port Optical Wdm Multiplexer Module Fiber Optic Cwdm Dwdm Fwdm For Ftth Fttx - China
price: 1.00 Dollar US$

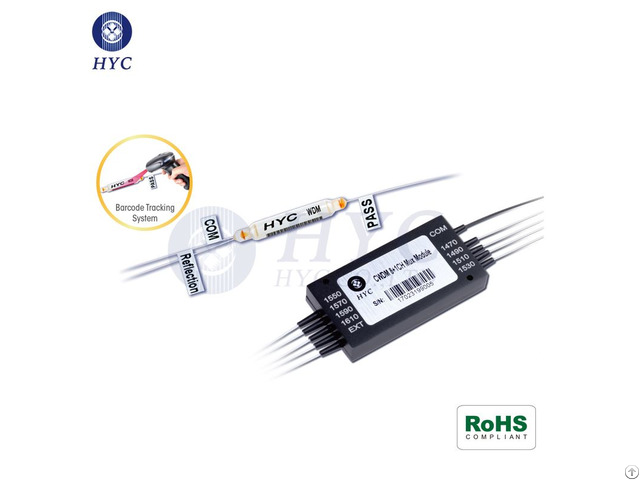

Product Description: 3-port WDM devices are used in passive optical WDM module; They can multiplex or demultiplex different optical signals in wavelength division multiplexing system, and increase the signal transmission speed and communication capacity.
Features: Low insertion loss, low PDL
High isolation
Wide operating wavelength
Wide operating temperature
High reliability and stability
Small package size, compact structure, and space saving Applications: WDM system
PON networks
CATV links Specifications: Items 3-port Mini CWDM 3-port Mini FWDM 3-port Mini DWDM
Operating wavelength 1260~1620nm&1460~ 1620nm 1260~1560nm 1500~1600nm
Channel spacing 20nm ——— 100G, 200G
Transmission band ±6.5nm, ±7.0nm, ±7.5nm 1540~1560nm(customer specified) ±0.12nm, ±0.25nm
Reflection band 1260~(ITU-20+Transmission band/2) &(ITU+20-Transmission band/2)~1620 1260~1360&1480~ 1500nm(customer specified) 1500~299792458/ (ITU+Channel spacing)+Transmission band/2 &299792458/(ITU-Chann el spacing)-Transmission band/2~1600
Transmission band Insertion Loss ≤0.6 dB ≤0.6 dB ≤0.7 dB
Reflection band Insertion Loss ≤0.4 dB ≤0.4 dB ≤0.4 dB About HYC Co., Ltd
HYC designs, manufactures and supplies a series of WDM Modules.
Get a quote from China's leading manufacturer of optical component.
HYC offers a range of passive fiber optics products, optical fiber connectivity, WDM, PLC, and more data center solutions for your fiber optic connectivity solutions.
Company Contact:
- Posted By: HYC Co., Ltd
- Phone: +86-755-81489797
- Address: Longhua district , shenzhen city, Shenzhen , Guangdong , China
- Email:
- Website: https://www.hyc-system.com
Published date: June 13, 2019
- Business Description: HYC Co.,Ltd(HYC)is a national Hi-tech optoelectronics company engaged in R&D, manufacture and marketing of fiber optical products.
Providing professional product and service for fiber connectivity,WDM, PLC splitter and high density datacom cabling.
HYC products and solutions widely applied in 4G/5G, Data Center and Cloud Computing industry etc.
