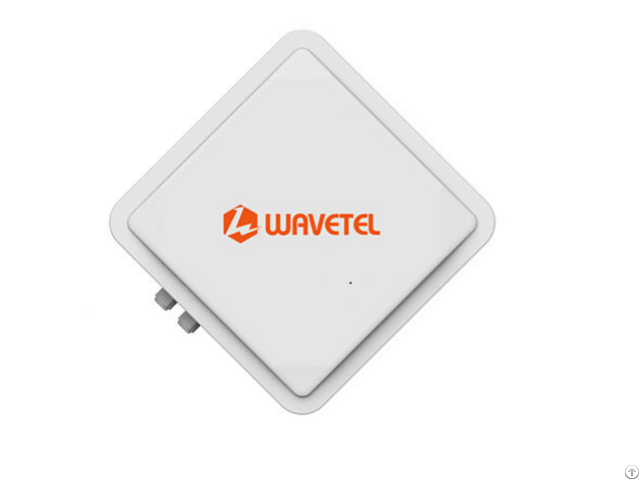

O220 Lte Ip67 Outdoor Cpe - China

LTE · Category 4, 3GPP R9 · Max DL/UL Rate: LTE-FDD: 150/50Mbps LTE-TDD: 130/30Mbps · Antenna: DL MIMO, Internal Panel Directional · Bandwidth: 3M/5M/10M/20M · Multi-APN (Optional) · Multi Bands Combination: Q1: LTE Band 1/3/7/8/20/38/40/41; 3G Band 1/2/5/8 Q2: LTE Band 1/2/4/7/12/38/40/41; 3G Band 1/2/5/8 Q3: LTE Band 1/2/4/7/28/40; 3G Band 1/2/4/8 Q4: LTE Band 3/7/20/42/43 Interface · Ethernet Interface 1*PoE 100/10 Mbps LAN 1*100/10 Mbps LAN · LTE Interface: 2 x SIM Card Slot · LED Indicator 3G/LTE Signal Strength, Running, PPP, USR Data Functions ·WAN Type: Static, DHCP, PPPoE, L2TP, PPTP ·Networking Interface: Multi-WAN, Bridge Mode, 802.1Q ·Advanced Routing Static Route, Policy Route ·Internal Address Management: DHCP Server, DHCP Relay ·Networking Protocols TCP/IP(IPv4/IPv6), UDP, RTP, SNTP, NAT, DHCP, DNS, DDNS ·IPTV: IGMP Proxy/Snooping, IPTV Bridge WiFi (Optional) · IEEE 802.11b/g/n, 2.4GHz

· Max Rate: 300Mbps

· Antenna: 2x2 MIMO, Internal Omni-directional

· Bandwidth: 20M/40M

· Maximum 25 Users

· Maximum 4 SSIDs

· WPS Supported Firewall & Security · Firewall Protection IDS&IPS, Block Ping/ICMP/IDENT IP and MAC Address Bind SPI Firewall, Port scan restriction · Access control Blocking by URL, IP Address, Mac Address, Protocol Type, Port · VPN: L2TP, PPTP, IPSec, EoIP · QoS: Based on Destination/Source IP/MAC, Application, DSCP, Packet Priority, Bandwidth · NAT: RIP, Port Forwarding/Triggering, DMZ, ALG Management · Management Protocol: WEB, Telnet, SNMP v1/v2, TR069 Environmental ·Size: 275mm x 275mm x 137mm ·Net Weight: 1250g ·Power Supply: Standard PoE 48V ·Ingress Protection: IP67 ·Operation Range -40℃ to 75℃, -40℉ to 167℉ ·Humidity 10%-90% non-condensin

Company Contact:

• Posted By: Wavetel Technology Limited

• Phone: 17503018982

• Address: 16F, Olympic building, Economicdaily Rord, FuTian, Shenzhen , China

• Email:

• Website: https://www.wavetelco.com

• Business Description: Established in 2007 and headquartered in Shenzhen, China, Wavetel Technology is a leading telecom hardware and solution provider to clients: Telecom Operator, ISP, MVNO and ICT integrator etc, beginning its business with a series of Business Router.

  Over the past few years, we never cease our development of new products and have greatly enriched our production lines.

  Till now, Wavetel products cover a wide range of Wired &Wireless networking equipment and solutions, including 5G CPE, 5G Router, LTE Gateway, Business Router, Session Border Controller, M2M Router etc.

  With vertically integrated capabilities and extensive experience in telecom product R&D throughout China, especially in Shenzhen, Shanghai & Beijing.

  Based on the prominent resources integration, Wavetel could deliver the complete telecom access solution, like Enterprise Voice and Data access, Enterprise Private Network, Carrier-class Fixed wireless access etc.

  Not only being passionate about researching and development, Wavetel also devotes itself to serve the customers with sales technical support and multiple business solution support.

  As a part of our corporate culture, providing excellent service to our customers is our goal and customers requirement is our motive power.

  Wavetel has been doing our best to provide all our clients with accurate, fast, and professional service to their need.

  Persisting management reform to realize workflow operation with high efficiency.

  Currently, products are exported to all over the world, dozens of countries in five continents have been widely used in the public network and enterprise network, and the clients involve B2B network operators, home network operators, system integrators, and many other user groups.
